Visual Detection of Noisy Patterns

1. Introduction

In a previous paper{l) a statistical theory of visual thresholds was reported which accounts for the influence both of quantum .noise and of visual noise added to the test patterns. This theory finds particular application in the pre­ diction of thresholds of vision through image intensifying systems which superimpose system noise on the observed scenes. In a subsequent paper{2) an additional factor was introduced to

allow for alternative mechanisms of noise integration within the summation areas.

Here we report the results of continued experimental work designed to validate and to extend these theories of vision ~ith noisy displays. In particular, an unequivocal experi­ mental demonstration of the predicted double­ threshold response is reported. An experimental measurement of the background luminance, for which the stimulus-threshold contrast has a mini­ mum value, allows the calculation of two important parameters of vision. These factors are:-

• (i) The quantum efficiency (S 0 ) of the eye, defined as the ratio of the number of quanta effectively absorbed at the retina to the number of quanta entering the eye. Thus, S 0 is a purely physi­ cal factor representative of sensi­ tivity.
• (ii) The factor of certainty (k). A detection threshold in the theory is considered to be the result of a decision with a predetermined prob­ ability of freedom from error. k is a measure of this probability; it is a subjective factor which can be varied by changing the instructions given to observers.

In normal visual threshold determinations, these factors are not readily separable; it is the addition of the extra quantum-like noise to the test patterns that permits their separation. In our experiments, these factors were determined for a range of observers.

2. The experimental system

The added visual noise used in the experi­ ment was quantum noise of the type obtained in the output from an image intensifier. The noise arises in intensifying systems as a result of the detection of individual photons at the input photocathode. The form of the added noise is similar to that of retinal quantum noise, except that the 'quantum' presented to the retina by the intensifier is much larger. To avoid confusion, the added noise will be referred to as 'scintillation noise'.

The experimental realisation of such a noisy display consisted of cinematographically projected loops of film of electronically produced random dot patterns. The presence of a stimulus was signalled by an increase in the mean scintillation density over the area of the stimulus. The individual scintillations were small <~ 3 min. of arc in diameter), circular, of uniform energy, and of very high contrast relative to the background.

Psycho-physical measurements of detection thresholds were made on the display using a modified method of limits. The subjects controlled the luminance of the display. The contrast was maintained constant for an indi­ vidual threshold measurement.

3. The predicted effect on thresholds of the added noise

In a paper by leurle et al (Z) a general expression is derived for the threshold contrast of a stimulus in a noisy display. A summary of the derivation of the theory is given below; for the detail the original paper should be consulted.

• (i) The suggestion that statistical fluctuations in the arrival of photons may present a fundamental limit to the performance of the eye at low light levels was first fully developed by Rose. (3,4) The basis of Rose's theory is an ideal detector continually sampling a statistically stationary random display of equal energy events resulting in a mean count of n events. An incremental increase 6n in the number of events in a sample will be required for the presence of the increment to be detected against the presence of the statistical fluc­ tuations around the mean n. The magnitude of the increment required for a predetermined certainty of detection is given by

A Poisson distribution for the detected photons is assumed in representing the magnitude of the noise present in a sample by IN. k is a con­ stant named by Rose "the limiting signal to noise ratio of the device" but is referred to in this paper as the factor of certainty. The notions of signal detection theory are considered in depth in papers by Tanner and Swets<S) and Green. (6 )

Rose's equation can thus be used to relate the threshold contrast 6n~ to the mean ~ viz.

Taking into account the quantum efficiency of detection at the retina the symbol ~ can be expressed as a function of the background illumination, we have then the equation

This equation represents the effect on detection of quantum noise in the background arising in the process of detection of li~ht at the retina.

• (ii) In the theory discussed by Beurle et al(2) a primary detection unit is postulated which samples within an area of radial symmetry the dimensions of which are a function of the mean background luminance and are stimulus invariant. Integration of the light falling within two summation areas strategically placed with respect to the retinal image of the stimulus enables the signal and background contributions

to be determined. The difference between these outputA is taken as an indicator of the presence of a signal. A spatial weighting function for the summation unit has been determined that gives a reasonable fit to experimental data on the detection thresholds of a range of disc sizes and contrasts.

• (iii) Rose's equation is combined with the empirical spatial weighting function and data from the literature on summation time and pupil area as a function of background luminance. These together enable threshold predictions to be made of the detection thresholds of relatively complex patterns on uniform backgrounds at low light levels. In the higher scotopic and in the mesopic range of luminances for patterns with extended borders, a linear or edge detector replaces the primary or area detector.
• (iv) The theory is extended to deal with scintillation noise in visual displays by determining the additional statistical fluc­ tuation in the light deticted at the retina. The total noise in the output of a summation unit is calculated as the sum of the quantum noise generated at the retina and the scin­ tillation noise derived from the display. The general expression for the threshold contrast of a stimulus in a noisy display is shown(2) to be :

The terms within the square root sign can be identified with the two sources of noise. The first term is representati ve of retinal quantum noise, and decreases with increasing display luminance. The second term is repre­ sentative of the scintillat i on noise, and increases with increasing display luminance. The threshold contrast has a minimum when the terms within the root sign have a minimum. At this minimum, when the stimulus is large com­ pared with the summation area, it is further<2> shown that :

The theory thus predicts that, for a given stimulus, a graph of threshold contrast against display luminance will the "U"-shaped. In a display without added nois~within the luminance range of our experiments, the threshold contrast is known to decrease monotonically with increasing background luminance. (Konig and Brodhum ( 7J) ·

4. Experimental results

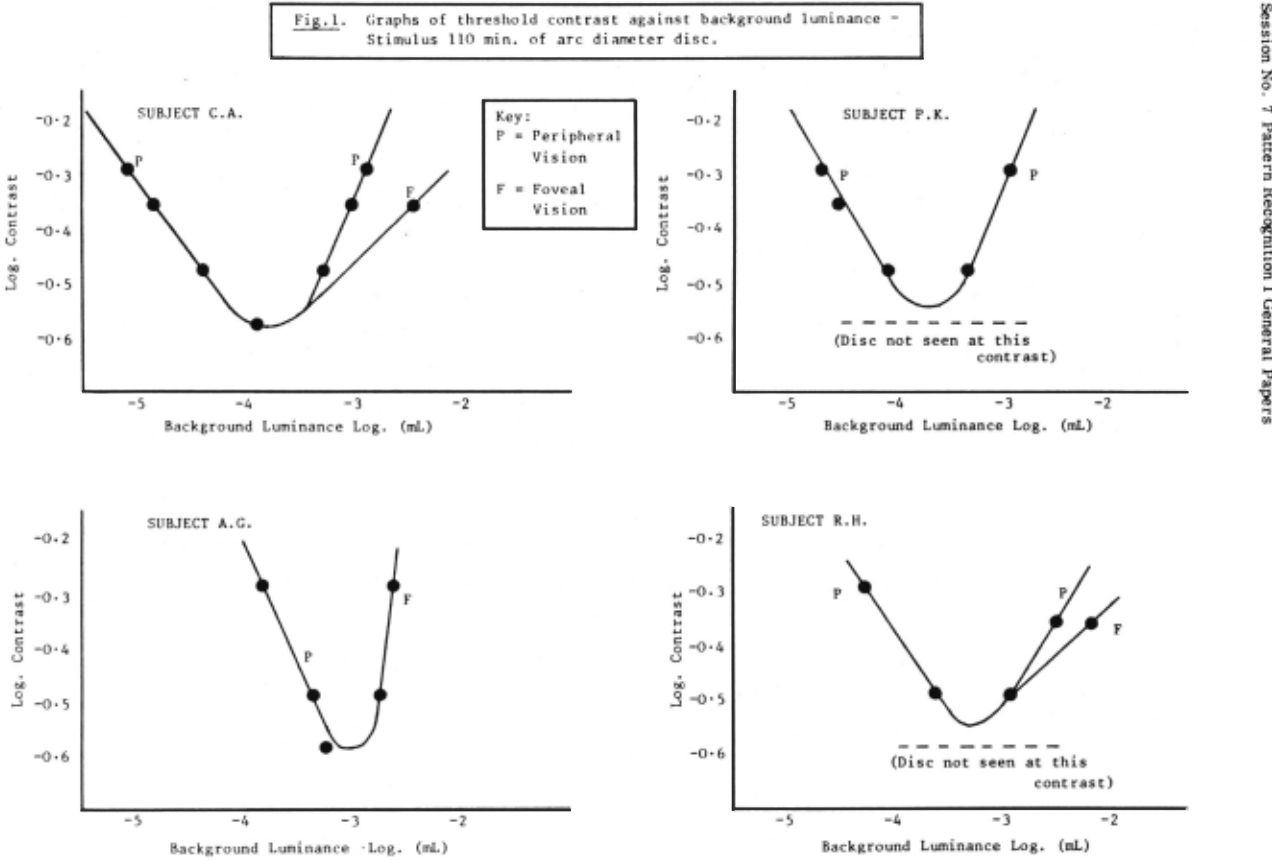

All of the subjects investigated to date have shown the "U"-shaped threshold contrast curves predicted by the theory. In addition to a general investigation for a range of stimuli, a large number of measurements were made using four subjects, the same stimulus and identical noise films. The mean curves calculated from these results are plotted in Fig.l. The expected error in a threshold plotted on the mean curve for any subject was less than 0·05 log. units; this figure includes the effect of within-session and day-to-day variations. Exam­ ination of the four curves reveals a range between subjects of 0·8 log. units in the value of the background luminance at the contrast m1n1ma. C.A., R.H. and A. G. show a change from peripheral to foveal vision at the high-contrast, high-luminance end of the visibility curve. With subject P.K., it was found that peripheral vision gave increased visibility within the luminance range of the system.

Substitution of the observed values for Qmin into equation [5] enabled the quantum efficiencies of the observers to be calculated. The calculated values of S 0 , and the values of the various parameters of the display and the visual system, appropriate to the contrast threshold at the lowest background level investi­ gated, were inserted into equation [4], and k was evaluated for each observer. The values of ~p(8) and T(9,10) were obtained from the lit­ erature. The results are tabulated below.

(These results are calculated attributing to 8 a value of 0·1, see Beurle et al(2)),

Observer C.A. was able to see the stimulus over the greatest luminance range; examination of the table of results shows that he has a relatively high quantum efficiency and a low factor of certainty. P.K. has a similar quantum efficiency to C.A., but his higher factor of certainty resulted in his reduced range of back­ grounds for which the stimulus was visible. Observer R.H. had a low quantum efficiency relative to P.K., but his lower factor of certainty allowed him to detect the stimulus over a larger range. Subject C.A., having both a low S 0 and a high k, was able to detect the stimulus over the smallest range of background luminances.

The calculated quantum efficiencies fall within the range of 0·5% - 5% calculated by Rose(3) on the assumption that k · 5. These efficiencies are less than the 67. derived by Barlow,<ll) but considering the large number of parameters involved in the determination, the agreement is reasonable.

5. Conclusions

The experiments reported here were per­ formed at low background luminances with an upper limit of about-2 log. mi... Experiments now in pro~ress are not subject to this limit, and thresholds can be determined by varying the contrast instead of the overall luminances of the display. Several phenomena are being investigated, including the peripheral/foveal changeover. It is thought that this work will lead to an extension of the empirical model of the visual detection process for patterns immersed in noise.

6. Acknowledgements

The work presented in this paper has been carried out within the Department of Electrical and Electronic Engineering at the University of Nottingham, under a contract sponsored by the Signals Research and Develop­ ment Establishment, Christchurch, Hants.

7. References

1. Beurle, R. L., Daniels , M. V., Hills, B. L. "Image intensifier design and visual performance at low light levels". Proceedings of the Fourth Symposium on Photo-Electronic Image Devices. Advances in Electronics and Electron Physics, Vol. 28B, Academic Press, 1969 .
2. Beurle, R. L. , Daniels, M. V., Hills, B. L. "Visual perception and the influence of visual noise". International Joint Conference on Artificial Intelligence, Washington, 1969. (In the press)
3. Rose, A. "The relative sensitivities of television pick-up tubes. photographic film, and the human eye". Proc. lnst. Radio Eng r s . , 30, 39 3-400, ( 19 4 2) .
4. Rose, A. "The sensitivity performan~e of the human eye on an absolute scale J.O.S.A., 38, 196-208, (1948).
5. Swets, A. and Tanner, W. P. "A decision­ making theory of visual detection". Psy. Rev.,§!, 401-409, (1954).

1. Green, D. M. "Psychoacoustics and detection theory". J. Acoust. Soc., Am E· 1189-1203, 0960).
2. Konig, A. and Brodhun, E. Sitzungsber, Preuss Akad. Wiss., Berlin, 27, 641-644, (1889).
3. De Groot and Gebhard, "Pupil size as determined by adapting luminance". J.O.S.A., !!.3_, 7, 492-495, (1952).
4. Barlow, H. B. "Temporal and spatial summation in human vision at different background intensities". J. Physiol., l.:!l_, 337-350, (1958).
5. Graham, C. H. and Kemp, E. H. "Brightness discrimination as a function of the duration of the increment in intensity". J. Gen. Physiol., l!_, 635-650, (1938).
6. Barlow, H. B. "Measurements of the: quantum efficiency of discrimination in human scotopic vision". J. Physiol., 160, 169-188, (1962).
