Improved Knowledge Acquisition for High-Performance Heuristic Search

1 Introduction

Searching for good or even optimal solutions for complex combinatorial problems has been a challenge in Arti�cial Intelligence research ever since AI's earliest days.

While it has been long recognized that the effectiveness of a particular search approach depends on the chosen representation as well as certain characteristics of the problem to be solved, to date there is no systematic approach available that allows one to ef�ciently engineer a special-purpose search strategy for a given search problem.

In this paper we present an approach that allows humans to articulate their intuition about how to search effectively for a given search problem. This appears to be a promising approach as humans often have good intuitions about how to �nd acceptable or good solutions to search problems, if they had to search manually.

We embedded our approach in the probabilistic search framework of Genetic Algorithms (GA). While GAs have a reputation as being general purpose, in practice it requires usually substantial adaptation effort to the search problem at hand. For complex problems this process may well take months in order to allow the GA to �nd an acceptable solution within reasonable time.

We chose a probabilistic search algorithm in which to embed the problem speci�c knowledge about effective search strategies as this allows one to stop the knowledge acquisition process at any time. A smaller knowledge base (KB) results in a less effective search process, but may still �nd a satisfactory or near satisfactory solution for less challenging problem instances. Incremental additions to the KB improve the effectiveness of the search.

As part of our discussion, we present a novel technique of varying GA mutation strategy based on execution history, having implications beyond our work for GAs in general.

For the knowledge acquisition process we build on the idea of Ripple Down Rules [3], which allows us to incrementally re�ne the given (initially empty) knowledge base. Ripple Down Rules (RDR) ensure that a knowledge base is only amended in a way that does not deteriorate its accuracy on previously seen instances.

Our variant of RDR is a signi�cant extension of the RDR approach. We also introduce an expanded knowledge acquisition process in which we help the expert �nd examples in past search history where the quality of the KB needs attention. This work is based on [1].

In section 2 we provide a short overview of genetic algorithms and RDR. This is followed by section 3 where we describe our framework HeurEAKA!. Section 4 introduces a case study of how HeurEAKA! was applied to detailed routing, an industrially relevant problem in VLSI design. We discuss our experiments and results to these in section 5, demonstrating that our approach is successful. The conclusions follow in section 6.

2 Background

Before we discuss our approach to combining GAs and Knowledge Acquisition, we start with a brief summary of these two areas:

2.1 Probabilistic Search with Genetic Algorithms

A number of evolutionary algorithms exist; we base our approach on genetic algorithms which is one such algorithm. Basic GAs are relatively easy to implement. A solution candidate for the given problem instance is encoded into a genome. A set of genomes makes up a population of potential solutions. The GA performs a search through the solution space by modifying a population of genomes, guided by an evolutionary heuristic. When a suitable solution has been identi�ed, the search terminates.

GAs usually start with a randomly initialized population of individuals, and guide their search by a �tness function of the individuals. In a probabilistic fashion, using operators for selection, mutation and crossover, the GA attempts to direct the search to promising areas. I.e. the GAmaintains a certain population size by replacing less �t individuals by newly generated ones. The new individuals are generated by mutation or cross-over based on parent individuals of high �tness.

Due to their generality and �exibility, GAs have been applied in many domains, demonstrating their effectiveness on hard problems [4; 6]. In very complex domains there are signi�cant challenges where generic GA techniques do not scale well. This includes high sensitivity to problem encoding and operator formulation, selection strategies, as well as selection of operator weightings, population size and running time[7; 13; 6]. Thus in practice substantial tuning of the GA is necessary to augment the generic algorithms.

In our approach, we do not use an encoding of our problem into a binary code as is often seen with conventional GAs. Instead, our encoding is a direct representation of a solution (see below for a better description). Our crossover operator is designed for this representation and thus is very effective in maintaining sub-solution coherence in the genome, and also identifying which areas of the genome appear �tter than others. We have a simple yet effective crossover operator, and chose to concentrate our work on the mutation operator - mainly because it was better suited to our the knowledge acquisition approach.

Our approach integrates with the GA a knowledge base where humans can codify their intuition about useful search steps and strategies for the given type of problem.

In addition, we present a novel method that uses domain knowledge for the prioritisation of mutation operators, increasing the GA's ef�ciency noticeably. Because we have suf�cient domain knowledge in our �tness function, we can identify parts of the genome that are desirable or undesirable and use that knowledge to in�uence mutation strategy. We also show how using the mutation history of these identi�ed characteristics to change mutation selection strategy.

2.2 Knowledge Acquisition using Ripple Down Rules

RDR [3] allows one to add rules to a knowledge base incrementally without compromising the previously shown satisfactory performance of the KB. An extension of RDR allows hierarchical structuring of RDRs - �nested RDR� (NRDR) [2]. NRDR allows the re-use of de�nitions in a KB, as well as the abstraction of concepts, which allows for more compact KBs.

Single Classi�cation Ripple Down Rules (SCRDR) use a binary tree where the root node is also called the default node. To each node in the tree a rule is associated, with a condition part and a conclusion which is usually a class - in our case it is an operator application though. A node can have up to two children, one is attached to an except link and the other one is attached to the so-called if-not link. The condition of the default rule in the default node is always true and the conclusion is the default conclusion. When evaluating a tree on a case (the object to be classi�ed), a current conclusion variable is maintained and initialised with the default conclusion. If a node's rule condition is satis�ed, then its conclusion overwrites the current conclusion and the except-link, if it exists, is followed and the corresponding child node is evaluated. Otherwise, the if-not link is followed, if it exists, and the corresponding child node is evaluated. Once a node is reached such that there is no link to follow the current conclusion is returned as a result.

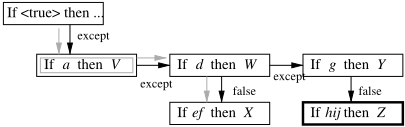

Figure 2.2 shows a simple RDR tree structure. In bold is a rule that a user might have added for the case where conditions adghij hold, causing action Z to be executed, instead of W.

For the purpose of integrating with the Genetic Algorithm, in our approach each case is a genome and conclusions are actually a sequence of actions that can be applied to the genome.

In typical RDR implementations, any KB modi�cation would be by adding exception rules, using conditions which only apply to the current case for which the current knowledge base is inappropriate. By doing this, it is ensured that proper performance of the KB on previous cases is maintained.

Nesting RDRs allows the user to de�ne multiple RDRs in a knowledge base, where one RDR rule may use another, nested RDR tree in its condition, (and in HeurEAKA! as part of an action, see section 3). I.e. the nested RDR tree is evaluated in order to determine whether the condition is satis�ed. A strict hierarchy of rules is required to avoid circular de�nitions.

3 HeurEAKA! - Our Framework for Improving Search with Domain Knowledge

The HeurEAKA! (Heuristic Evolutionary Algorithm with Knowledge Acquisition) framework is composed of a general GA scheme and a knowledge acquisition (KA) component.

Each genome in the GA population represents a potential solution to the problem to be solved. While searching, the GA needs to perform a �tness evaluation and the mutation of a genome. For this it uses the two knowledge bases, the Mutation KB and Fitness KB. The GA presents a genome to the relevant KB, which responds by suggesting a mutation or �tness score. (The crossover function is handled differently, more details below).

The KA module handles maintenance of the KBs, which contain collections of NRDRs. The NRDRs are incrementally developed by the expert through the addition of rules

(the next section contains a detailed description of this process).

The Fitness KB contains rules based on past examples given by the expert about desirable and undesirable traits of genomes. The GA requires a �tness value, so the rules contain various calculations the expert adds to re�ect these traits.

The Mutation KB similarly contains rules accumulated from expert recommendations. Each rule contains an action to be executed under certain conditions. Each action is one or more commands which can modify the genome. The KB contains a set of NRDRs which contain these rules. When a genome is presented to the Mutation KB, it is evaluated against these NRDRs. In accordance to the RDR algorithm, actions which satisfy the relevant conditions are selected for execution. A non-deterministic element is introduced by letting the expert attach probabilistic weights to selected NRDRs and letting a random procedure pick which one to execute. This allows the expert leeway to speculate about what the best actions might be, effectively letting the GAs heuristics �decide� the most appropriate action.

As opposed to other methods related to case-based reasoning and GAs (e.g. [12] or [11]), the expert uses past cases to formulate rules to explain improvements, rather than using past examples or similar solutions injected into the evolutionary process, or trying to extract the rules automatically.

The overall architecture of HeurEAKA! is domain neutral. The implementation contains KB management modules, GA, a graphical user interface as well as range of utilities supporting the expert evaluate past searches. This is complemented with a smaller component that needs to be implemented for each problem domain containing a relevant solution representation. The user interface also requires a small addition to translate this representation for visualisation.

A general purpose language is extended with primitives to make it suitable for describing the domain speci�c representation. Rules entered by the expert are speci�ed using this simple language, which is loosely based on �C� syntax. The rule conditions use logical expressions while actions include a range of commands, including variables, loops and references to other NRDRs which are evaluated analogously to function calls. Section 5 gives examples of rule speci�cation.

3.1 The Knowledge Acquisition process in HeurEAKA!

The overall approach allows the user to run the Genetic Algorithm with the current KBs and monitor or inspect afterwards whether the �tness function computed for an individual as well as the applied mutation operator where appropriate/promising steps to do.

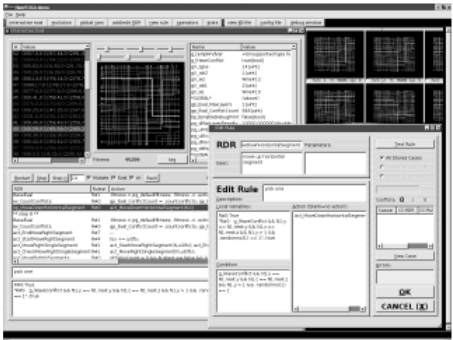

To do that, the genetic algorithm can be started, stopped and reset via a graphical user interface. A snapshot of the GA population is presented visually, from which the user can pick an individual for closer inspection.

Figure 2 shows an individual genome being inspected. A user can step through the process of mutation and evaluation of that genome as if the solution was part of the GA population. Given non-deterministic elements of operator selection, the interactive debugger maintains complete state descriptions, allowing the user to step forward and backwards in execution history and also recreating conditions for repeated testing.

The expert can review actions applied to the genome and make modi�cations to the KB if he/she feels they are needed. The modi�cations are typically done by adding exceptions to the NRDR (in accordance with RDR methodology described above), but may also be an edit of an existing rule or the addition of a new NRDR.

In the traditional Ripple Down Rules approach it is assumed every rule entered is correct and has its reason to be there, modi�cation of a rule may have undesirable side effects which are often dif�cult to control. While these are valid reasons for not modifying rules, our experiments suggest that it is sensible to modify rules at the beginning of building a knowledge base. In particular, for the de�nition of mutation operators it proved useful to have this option to modify rules.

3.2 Advanced features for supporting Knowledge Acquisition

Once a suf�ciently large KB has been created based on smallscale evaluation, more automated methods are needed to support a user's interaction:

Genome Visualisation: One of the strengths of using RDR is that the approach is successful in eliciting tacit knowledge [3], since rules are formulated while the system is in use and with the justi�cation of an example. With complex problems (such as is described in section 4), the visualisation of a solution is very important in allowing the user to form an intuitive understanding. In the evaluation module, there is immidiate visual feedback when rules are applied.

Trigger functions: During the execution of the GA, thousands or even hundreds of thousands of rule applications to all manner of genomes are made. It is not possible for the expert to supervise each case. The user can de�ne a trigger function which is applied to each genome during the execution of the GA. If the function's condition is met, an exception is thrown, halting the GA's execution, providing a pointer to the individual along with an execution trace of recently applied rules.

NRDR usage pro�le: Execution statistics are kept for each NRDR execution, recording the frequency of use over many GA runs. Comparing the pro�le of aggregate use of NRDRs by successful vs less successful genomes (judging by their �tness function and how soon they were eliminated from the GA population), provides some impression of an NRDRs �usefulness� and role in GAs lifetime. Figure 3 shows the frequency of a few selected NRDRs relative to the genome's age (the examples are from the VLSI case study discussed in the next section).

In the less �t genomes, some operators have a high count compared to the �tter genomes. These operators turn out to be �high churn� operators - they can affect large sections of a genome. In the earlier stages of a GA these NRDRs support high entropy and thus allow the search to cover more search space. When the genome is closer to the ideal solution, i.e. has more desirable characteristics in place, these NRDRs disrupt established �good� con�gurations. Their relative usage frequency in �tter populations is thus lower.

The characterisation of NRDR utility can only provide the expert with a rough idea of its �usefulness�. In that context it did contribute somewhat to the intuition the expert developed when doing KA. Where it was found to be quite useful though, was when the expert introduced some modi�cation to the NRDR which inhibited it from functioning as well as previously - meaning that it was much less used in arriving at �t genomes. This helped catch at least a few of errors. In �gure 3 the arrow indicates such an NRDR.

Tuning probabilistic weighting of NRDRs: In section 3 we mentioned the notion of using probabilistic weightings to affect the GA's selection of NRDRs. This allows the expert to �tune� the KB when he/she has a good intuition as to what action might be useful, but is not entirely sure.

In our experiments we identi�ed a set of NRDRs which would probably be useful for various types of problems. For these we created weightings giving preference to the relevant NRDRs. This was in the �nal stages of re�ning our KB, where we allowed 1/4 of all modi�cations to be decided randomly, and 3/4 based on the probabilistic weightings based on problem classi�cations. With this we saw a measurable improvement in our search results.

In the experiments conducted in our test domain, we saw a measurable improvement in our search.

Identifying genome modi�cations of interest: Sometimes a genome mutation plays a role in the long term success of that genome, but the immediate result of the mutation is a reduction or no change in its �tness. In general, GAs cope with this by having a large enough population pool and preventing premature �tness convergence, so as not to throw out such genomes too soon. In traditional GAs it is hard to otherwise account for these cases. Given that we have an expert who can make judgment on individual examples using intuition and hindsight, the �tness function can be augmented to bridge the interval needed to see a promising mutation come to fruition.

The problem comes with identifying these candidate mutations in order to present them to the expert. We identi�ed all the mutations falling into a window size of 10 actions prior to a �tness improvement exceeding a given threshold. These were collected for review for the expert's consideration. In practice we found there was too much data to effectively judge the cases by hand.

We then tried using a discounted reward scheme, and some other methods to help reduce the candidate space, but have not yet been able to improve matters. This aspect of the project are currently being worked on.

3.3 Advanced features for use in Knowledge Acquisition

Preferences in choosing parts of the genome to mutate: As hinted at in the genetic algorithms section (2.1), we have introduced a novel method of choosing parts of a genome for mutation. In our �tness function we are able to identify parts of the genome that are undesirable.

We keep track of the modi�cation of those parts over time, and give a higher preference weighting to newly arising problem areas. This is done by keeping a list of existing problem areas and discounting their preference weighting after each �tness evaluation. When it comes to choosing a part of the genome to mutate, we normalise these weights and make a probabilistic choice of the identi�ed problems. This results in newer problem areas having a higher chance of being picked. With this scheme we allow some continuity in search direction, potentially overcoming local minima in the search space.

In the context of our experimental domain, we empirically found a 65% discount factor gave the best results. Compared with no discount scheme (giving all identi�ed problem areas equal chance) the number of successful GA trials was 85% higher, and the successful trials took on average half the time to complete.

Mutation look-ahead: We added a feature that allows the expert to make use of a �mutation look-ahead� function in the rule speci�cation. This function allows for the comparison of a genome before and after a mutation has been made. This effectively allows a local search in the mutation NRDR (similar to a Lamarckian learning mechanism in evolutionary algorithms).

Our knowledge base incorporated local search by comparing the �tness of a genome before and after a candidate mutation. This can be used in an RDR at any point, but was most successfully used for a generalised mutation lookahead. Here, for each mutation a series of 10 steps, each recommended by the mutation KB was used, while the �tness values were recorded. The point of highest �tness value in the sequence was picked as the �nal mutation.

When using the look-ahead mechanism, GA trials had a signi�cantly higher success rate. Each successful trial was also faster to converge on a solution (as measured in overall execution time).

4 Case Study - Detailed VLSI Routing

In order to demonstrate that genetic algorithms enhanced with knowledge acquisition can be used to develop algorithms for solving complex combinatorial problems, detailed channel routing as well as switchbox routing, both industrially relevant problems within the realm of VLSI design, were chosen to demonstrate the approach.

4.1 Domain Speci�cs

A channel routing problem (CRP) is given by a channel of a certain width. On both sides of the channel are connection points. Each connection point belongs to a certain electrical net and all connection points of the same net need to be physically connected with each other by routing a wire through the channel and, of course, without two nets crossing. The width of the channel determines how many wires can run in parallel through the channel. The length of the channel determines how many connection points on both sides of the channel there may be. Furthermore, the layout is done on a small number of different layers (e.g. 2 to 4 layers), to make a connection of all nets without crossing possible at all. Two adjacent layers can be connected at any point using a so-called via.

The switchbox routing problem (SRP) is similar to the CRP but usually more dif�cult, as it deals with connections on all four sides rather than only two. A solution to the CRP and SRP will be referred to as a layout.

Genome Encoding: A genome describes the layout of a CRP or SRP solution. This takes the form of a list of straight wire segments.

Initially, a genome will usually not represent a valid solution as some wires are usually crossing. Only when all those crossings have been eliminated and not more than the prescribed number of layers are used would the �tness value of a genome reach a satisfactory level.

Genome Operations: Individuals in the GA are initialised with a random wire layout without regard to con�icts. The GA operates on a genome by crossover, mutation and evaluation. However, the GA's crossover operation is currently not controlled by a knowledge base. The crossover for our layout problems groups wires into mutually exclusive sets, one of those sets is exchanged between parents (i.e. the corresponding wires are exchanged). The crossover operator is thus highly sensitive to the structure of the problem, as well as interaction between its elements. The formulation of the crossover operator is domain speci�c, and we plan to make it part of the knowledge acquisition cycle in future versions.

Evaluation is done using the evaluation KB. Typically the user uses as a �tness criteria the number of layers and con�icts in a layout. The length of wires, number of vias and possible cross-talk (electronic interference occurring in parallel wires) are also useful �tness criteria.

The mutation KB contains rules designed to manipulate the layout, typically they would describe the resolution of a con�ict identi�ed using the .�ndcon�ict command (a primitive function returning a con�ict found in the layout).

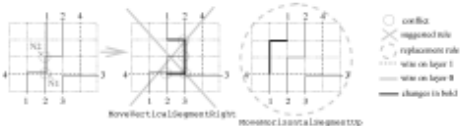

Example of rules applied to the Switchbox Routing problem: Initially, a KB is built up de�ning operators using primitives based on node and wire manipulation. These form the foundation for more high-level concepts which can be used intuitively by an expert.

Assuming we start with a KB with relatively high-level actions de�ned, e.g. MoveVerticalSegmentRight, and MoveHorizontalSegmentUp. When applied to the example in �gure 5, it seems that the action MoveVerticalSegmentRight is unlikely to lead to a promising solution. The expert can amend the KB to suggest an alternative action. (see nodes labeled N1 and N2 in �gure 5). In this case, the user will �nd that MoveVerticalSegmentRight is undesirable, and formulate a rule with condition is Vertical(N1) && is Horizontal(N2) && right of(N2.next,N1), and action MoveHorizontalSegmentUp(N1.prev). This rule would be added as an exception in the KB. The operators referenced here are de�ned as RDRs elsewhere in the KB. is Vertical(N1) returns true if the segment between N1 and its succeeding node is vertical (change in row), is Horizontal(N2) returns true if the segment between N2 and its successor is horizontal (change in column). right of(N2.next,N1) will return true if the node succeeding N2 lies to the right of N1.

5 Experiments and Results

Experiments: In order to test our approach and the implemented tool, a KB was created. Initial tests were done with a KB containing 2 RDRs and 10 rules, later tests were run with 50 RDRs and 167 rules and 53 RDRs and 182 rules.

In order to show that the introduction of domain knowledge improved the search, we tested three different KBs: A �minimal� KB with 5 rules, a �small� KB containing 10 rules, and a �large� KB containing 167 rules. Using the �rst two, the GA was unable to solve the given problem, while using the third, it was. Fig.4 shows progressive improvement in search with KB size.

A KB containing 53 RDRs and 182 rules was created. Initial rules were low-level in nature, dealing with manipulation of nodes and wires. This technical work required frequent editing and debugging. Using the validation module with trigger functions (described above) was helpful at this stage.

After the low level rules were de�ned, rules could be de�ned at a higher level of abstraction. Because this was a more intuitive abstraction level, it was easier to formulate rules and required less revision. The high level NRDRs were used by the mutation KB, for what the probabilistic algorithm was intended: choosing from the different high level strategies in an attempt to resolve con�icts.

Results: We were able to solve well recognised benchmarks from the domain of switchbox and channel routing. These included Burstein's dif�cult channel routing problem, Burstein's switchbox routing problem, the DENSE switchbox and the JOO 6 16 problem, amongst others. The solutions found were comparable to others' attempts, including those of the WEAVER, Silk, Packer and Monreale routers [9], [5], [10].

We found it initially dif�cult to complete some of the more challenging benchmarks until we used the techniques listed in sections 3.2 and 3.3

On average rules took approximately 10 minutes each to formulate, taking about 30 hours for the formulation of a viable knowledge base. The formulation of effective CRP and SRP algorithms has been the subject of much study and industry-standard algorithms took many years to develop [8]. In our case KA was done by a novice, using mainly intuition and being able to incrementally specify rules in a natural way on the knowledge level. Thus the effort and expertise required was signi�cantly less than commercial routing solutions.

6 Conclusion

We have presented an approach to solving complex combinatorial problems by using a generic search algorithm and incrementally introducing domain knowledge in order to make the search tractable. We use knowledge acquisition that supports the exploratory development of solutions, which, when combined with a GA, makes it easier to tackle dif�cult problems than having to design a conventional algorithm.

While GAs have been successfully used in many domains, in practice they often require considerable augmentation to make the generic architecture effective in complex domains. The unconventional KA technique of RDR formalises this adaptation process, allowing an expert to intuitively develop a domain-speci�c solution. In order to use RDR for integration with GAs, we have introduced new methods to make them work with probabilistic search.

We have also presented a number of advanced techniques that enhance the KA process. These include the use of trigger functions, NRDR usage pro�les and weightings, mutation look-aheads and automatic case identi�cation.

As part of our mutation operators, we have identi�ed a promising technique for improving probabilistic search by using the mutation history of a genome to bias the search into more recent areas of exploration. We have found this heuristic to return promising results.

The application of our framework in the well understood domain of detailed channel routing and switchbox routing, enables us to compare our results against industrially used algorithms. We have shown that we are able to solve accepted benchmarks competitively, using far less effort than needed for the development of conventional algorithms.

In future work we will investigate the application of our techniques to a different domain. Another worthwhile direction would be to explore the applicability of our advanced KA techniques to more traditional KA domains outside of search.
