Unsatisfiability Proofs for Weight 16 Codewords in Lam's Problem

1 Introduction

Geometry is one of the oldest branches of mathematics, being first axiomatically studied by Euclid in the 3rd century BC. Given a line and a point not on it, Euclid's "parallel postulate" implies that there exists exactly one line through the point and parallel to the given line. For 2000 years mathematicians tried in vain to prove this axiom but eventually geometries that did not satisfy the parallel postulate were discovered. For example, in the early seventeenth century G. Desargues studied projective geometry where parallel lines do not exist. Projective geometry became widely studied in the nineteenth century, leading to the discovery of projective geometries containing a finite number of points.

Despite a huge amount of study for over 200 years, some basic questions about finite projective geometries remain openfor example, how many points can a finite projective plane contain? It is known [Kåhrström, 2002] that this number must be of the form n2 +n+1 for some natural number n (known as the order of the plane) and certain orders such as n = 6 have been ruled out by theoretical arguments. For every other n up to ten a finite projective plane of order n can be shown to exist through an explicit construction. No theoretical explanation is known that answers the question if a projective plane of order ten exists and answering this question has since become known as Lam's problem. In the 1970s and 1980s an enormous amount of computing was used to show that no such plane exists [Lam, 1991]. The computations were based on the existence of codewords in the error-correcting code generated by a projective plane of order ten. It was shown [Carter, 1974] that such a code must contain codewords of weights 15, 16, or 19-but exhaustive searches showed that such codewords do not exist.

Each search required more advanced search techniques and orders of magnitude more computational power than the previous search-the weight 15 search being the easiest and the weight 19 search being the most challenging. In this paper we focus on the weight 16 search that originally required about 2,000 hours on supercomputers and a VAX-11 supermini machine. Additionally, in 2011, using an optimized C implementation the weight 16 search was verified in 16,000 core hours split across fifteen desktop machines [Roy, 2011].

We provide a reduction of the weight 16 codeword existence problem to the Boolean satisfiability problem (SAT) and a SAT certification that the resulting instances are unsatisfiable. This is done using the cube-and-conquer SAT solving paradigm [Heule et al., 2011] and uses functionality from the computer algebra systemMaple for the purposes of symmetry breaking. See Section 2 for background on the cube-andconquer paradigm and Section 3 for a description of our SAT encoding and symmetry breaking methods. Our search completed in about 30 hours on a desktop machine, significantly faster than any previous search.

Furthermore, no previous search was able to provide any kind of a certificate following a successful completion. Thus, an independent party had to take on faith that the searches did in fact complete. In contrast, our search produces unsatisfiability certificates that an independent party can use to verify that our searches were successfully run to completion. The proofs of nonexistence generated by the SAT solver amounted to about 1 terabyte in the uncompressed DRAT (deletion resolution asymmetric tautology) format [Wetzler et al., 2014]. See Section 4 for details on our implementation and results.

We do not claim our search is a formal verification because our encoding relies on many mathematical properties that were not derived in a computer-verifiable form, such as the result that there are ten nonisomorphic cases that need to be considered [Carter, 1974] in addition to the correctness of our encoding and implementation. However, we now have a potential method for producing a formal proof: by formally deriving our SAT encoding from the projective plane axioms. This would require expertise in both projective geometry and a formal proof system and would be a significant undertaking. However, the tools to do this already exist and have been used to formally verify other results derived using SAT certificates [Cruz-Filipe et al., 2018; Keller, 2019].

2 Background

We now describe the background necessary to understand the nonexistence results of this paper, including the method that we used to solve the SAT instances and the mathematical background on projective planes and their symmetry groups that is necessary to understand our SAT reduction.

The cube-and-conquer paradigm. The cube-and-conquer paradigm was first developed by Heule, Kullmann, Wieringa, and Biere [Heule et al., 2011] for computing van der Waerden numbers, a notoriously difficult computational problem from combinatorics. In recent years the cube-and-conquer method has been used to resolve long-standing combinatorial problems such as the Boolean Pythagorean triples problem [Heule et al., 2017] and computing the fifth Schur number [Heule, 2018].

The idea behind the cube-and-conquer method is to split a SAT instance into subproblems defined by cubes (propositional formulae of the form l1 ∧ · · · ∧ ln where li are literals). Each cube defines a single subproblem-generated by assuming the cube is true-and each subproblem is then solved or "conquered" either in parallel or in sequence.

Projective planes. A projective plane is a collection of points and lines that satisfy certain axioms, for example, in a projective plane any two lines intersect at a unique point. Finite projective planes can be defined in terms of incidence matrices that have a 1 in the (i, j)th entry exactly when the jth point is on the ith line. In this framework, a projective plane of order n is a square {0, 1}-matrix of order n2 + n + 1 where any two rows or any two columns intersect exactly once (where two rows or columns intersect when they share a 1 in the same position). To avoid degenerate cases we also require that each row contains at least two zeros or equivalently that each row contains exactly n + 1 ones. Two projective planes are said to be isomorphic if one can be transformed into the other via a series of row or column permutations.

Projective planes are known to exist in all orders that are primes or prime powers and the prime power conjecture is that they exist in no other orders. Some orders such as n = 6 have been ruled out on theoretical grounds making n = 10 the first uncertain case. This stimulated a massive computer search for such a plane [Lam, 1991] based on the form such a plane must have assuming certain codewords exist. A codeword is a {0, 1}-vector in the rowspace (mod 2) of a {0, 1}-matrix and the weight of a codeword is the number of 1s that it contains.

It is known [Carter, 1974; Hall, 1980] that a projective plane of order ten must generate codewords of weight 15, 16, or 19, thus dramatically shrinking the search space and naturally splitting the search into three cases. As shown by [Carter, 1974], up to isomorphism there are ten possibilities for the first eight rows of the planes that generate weight 16 codewords. Five of these possibilities (cases 2 to 6a in Table 1) were eliminated by the searches of [Carter, 1974] and the other five were eliminated by the searches of [Lam et al., 1986].

Incidencematrix structure. Carter derived numerous properties that the structure of a projective plane generating a weight 16 codeword must satisfy. In particular, the projective plane can be decomposed into a 3 × 2 grid of submatrices as follows:

Here the numbers outside the matrix denote the number of rows or columns in that part of the submatrix. The numbers inside the matrix denote how many 1s there are in each column in that part of the submatrix; certain columns depend on a parameter k that differs between columns. Additionally, Carter showed that every entry in the first 16 columns is uniquely specified by the starting case. We call the columns incident with at least two of the first eight rows the initial columns and the columns incident with at least one of the first eight rows the inside columns. Full starting matrices for each case are available at uwaterloo.ca/mathcheck/w16.

Symmetry groups. A projective plane (or partial projective plane) may be symmetric in nontrivial ways, in other words, there may exist row or column permutations that fix the entries of the plane. Such symmetries are important to detect because they can dramatically reduce the search space-and therefore the running time-of any search that makes use of them [Aloul et al., 2003; Heule et al., 2015].

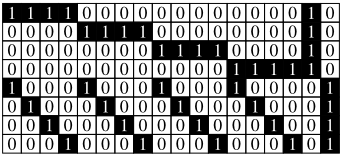

For example, Figure 1 shows the initial configuration (the first eight rows and initial columns) from case 1c. This matrix is fixed by the permutation that swaps the first two rows and column k with column k + 4 for 1 ≤ k ≤ 4. The set of all row and column permutations that fix the entries of a matrix forms a group known as the symmetry group of the matrix.

In the matrix of Figure 1 any permutation of the first four rows, any permutation of the last four rows, and the permutation that swaps row i and row i + 4 for 1 ≤ i ≤ 4 occur (with appropriate column permutations) in the symmetry group. The size of this permutation group is 4!2 · 2 = 1152 and the group is isomorphic to the group of symmetries of a pair of tetrahedrons. Up to isomorphism, the symmetry groups for each of the ten possible initial configurations are given in Table 1.

3 SAT Encoding

We now describe the encoding that we use to prove that projective planes of order ten with weight 16 codewords do not exist. Although SAT solvers have been widely used in searching for combinatorial designs [Zhang, 2009] they have only recently been applied to projective planes [Bright et al., 2020]. Our encoding that an incidence matrix defines a projective plane is described in Section 3.1, although we do not encode the entire matrix-we choose the number of rows and columns to use based on the structure of the starting cases and in an attempt to minimize the number of variables and constraints necessary. Sections 3.2 and 3.3 describe the methods that we use to reduce the symmetries present in the search.

3.1 Incidence Constraints

First, we describe how we encode the property that the incidence matrix defined by Boolean variables pi,k (representing that the (i, k)th entry of the matrix contains a 1) satisfy the properties of a projective plane. In particular, we encode the property that any two rows or columns of the projective plane intersect exactly once by encoding that any two rows or columns intersect (a) at most once and (b) at least once. In fact, we only encode intersections occurring in the first 80 rows-our searches find no satisfying assignments of even this strictly smaller set of constraints.

For (a), the constraints ∧111 k,l=1 (¬pi,k ∨¬pi,l ∨¬pj,k ∨¬pj,l) say that row i and row j do not intersect twice. We include these constraints for each distinct pair of indices (i, j) with 1 ≤ i, j ≤ 80 and ignore the constraints where k or l is larger than the last column used (which varied between cases).

For (b), the constraint ∨111 k=1 (pi,k ∧pj,k) says that row i and row j intersect at least once. However, this constraint is not in conjunctive normal form so it can't directly be used with a typical SAT solver. Instead, we use this constraint in the form ∨k∈S(i) pj,k where S(i) is the set of indices k such that pi,k is true. The first eight rows of the projective plane are completely known beforehand in each starting case, so S(i) is well-defined for 1 ≤ i ≤ 8. We include these constraints for all 1 ≤ i ≤ 8 and 9 ≤ j ≤ 80.

Similarly, we include constraints that say that column k and column l intersect at least once. These constraints are of the form ∨i∈T(k) pi,l where T(k) is the set of indices i such that pi,k is true. We used these constraints for all k between 1 and 16 and for all l > 16 up to the last column used.

In order to use these constraints we require at least 80 rows and all inside columns because the indices in the set S(i) for 1 ≤ i ≤ 8 are from the inside columns, and the indices in the set T(k) for 1 ≤ k ≤ 16 are from the first 80 rows. Experimentally we find that only using inside columns produces satisfiable instances-to make all instances unsatisfiable we use five additional 'outside' columns (selected to be incident to a row needing another five points to contain eleven 1s).

3.2 Breaking Column Symmetries

Consider the starting matrix shown in Figure 2 (the first eight rows of case 6c). This matrix has a symmetry group containing 5!6 · 4!2 · 22 permutations. The factor of 22 arises from symmetries that involve row permutations and we discuss how we handle those in Section 3.3. The larger 5!6 · 4!2 factor arises from column permutations of the last 38 columns which can be split into six blocks of five columns and two blocks of four columns. We break these symmetries by enforcing a lexicographic ordering on certain submatrices of the columns.

For example, consider the final block of case 6c (the last four columns shown in Figure 2). By the definition of a projective plane each of these columns must intersect the first column somewhere in the matrix. An examination of the full matrix shows there are exactly six rows where this intersection could happen. Figure 3 shows the case when the rows of the matrix are ordered so that the six rows occur adjacent to each otherso that the intersections must occur in a 6 × 4 submatrix. We break the column symmetries by lexicographically ordering the columns in this submatrix.

Each row of the submatrix contains at most a single 1 or we would have a pair of columns that intersect each other twice. Thus, lexicographically ordering the columns of the submatrix ensures that a 1 cannot be in the upper-right or lower-left corners of the submatrix as displayed by the 0s in Figure 3.

Similarly, each column of the submatrix contains at most a single 1 (in fact it must contain exactly a single 1 since the first column must intersect each of the other columns in the submatrix). Consider the entry marked x in Figure 3. If this entry contains a 1 then all entries in the next column that are above it must be 0 for the columns to be correctly ordered.

Thus, considering the variables labelled x and y in Figure 3, we include the clause ¬x ∨ ¬y in our encoding. We include similar clauses for each unknown entry in the submatrix. The remaining satisfying assignments are exactly those whose columns are in lexicographic order, therefore enforcing a unique ordering on columns which are otherwise identical. By using this method on each block of column symmetries this decreases the search space size by a factor of 5!6 · 4!2 ≈ 1015 in the case of Figure 2. Each block is independent of the others and will have its symmetries broken in a different submatrix.

3.3 Breaking Initial Symmetries

In Section 3.2 we described how we break most of the symmetries in our instances. However, it remains to break the initial symmetries involving both row and column permutations (i.e., those described in Table 1). We used two methods of breaking these symmetries. One method was particularly effective when the size of the symmetry group was not too large and was used in the cases 2 to 6c. The second method took advantage of the specific form of the symmetry group of the cases 1a-c.

Lex method. In addition to the column symmetries of the last 38 columns of the matrix in Figure 2 there are an additional two generators ϕ1 and ϕ2 of the symmetry group of this matrix. These generators involve both row and column permutations. In cycle notation the row permutations are (1, 5)(2, 6)(3, 4) and (1, 2)(3, 4)(5, 6)(7, 8) and the column permutations are completely determined by these row permutations. For example, after swapping rows 1 and 5 and rows 2 and 6, the first column (containing 1s in rows 1 and 2) becomes the 14th column (containing 1s in rows 5 and 6), so ϕ1 must send column 1 to column 14.

Similarly, permutations of the first eight rows can be extended to permutations of the entries in the submatrix P consisting of the first 80 rows and the initial columns-the extension uniquely determined by the restriction that the initially known entries remain fixed. We now consider the action of these permutations on the submatrix P. For example, in case 6c the first 24 columns form the initial columns and the lex symmetry breaking method focuses on the unknown entries in the upper-left 80 × 24 submatrix P .

In particular, we fix an ordering on the variables in the submatrix P whose values are undetermined. For example, one possible ordering of these variables is left-to-right and top-to-bottom, i.e.,

Under the symmetry ϕ1 this ordering becomes

which we denote by ϕ1(LP ). If P is a 80 × 24 partial projective plane then ϕ1(P) is also a 80 × 24 partial projective plane. It follows that any partial projective plane of this form can be transformed into an isomorphic partial projective plane with LP ≤lex ϕ1(LP ). Similarly, up to equivalence we can assume that

where ϕ is any symmetry of P . In the example of Figure 2 we take ϕ to be ϕ1, ϕ2, and ϕ1 ◦ ϕ2 (there is no need to take ϕ to be the identity symmetry since then (∗) is trivial).

It remains to describe how we encode the lexicographic constraint (∗) in conjunctive normal form. We express the general lexicographic constraint [x1, . . . , xn] ≤lex [y1, . . . , yn] using 3n - 2 clauses and n - 1 new variables [Knuth, 2015]. Denoting the new variables by a1, . . . , an-1, the clauses are

for k = 1, . . . , n-1 (with ¬a0 omitted) along with the clause ¬xn ∨ yn ∨ ¬an-1.

In practice this method breaks almost all of the symmetries of the search space that exist in the initial columns, though it is not guaranteed to break them all. This is because for certain instantiations of the variables of P it may be the case that (∗) does not remove any isomorphic solutions. This occurs when P is unchanged under all symmetries ϕ of the symmetry group (i.e., when LP = ϕ(LP ) for all symmetries ϕ). However, this did not occur very often in practice.

Similar to the work [Crawford et al., 1996] this method uses constraints of the form (∗) for every nontrivial symmetry. Because of this, it worked best when the symmetry group was relatively small. We used this symmetry breaking method on the starting cases 2-6c.

Block method. Consider the starting matrix given in Figure 1 (case 1c). Since each row contains eleven 1s in total and there are five 1s per row in the initial columns, there are another six 1s in each row. Furthermore, since the rows are already pairwise intersecting in the initial columns, none of the rows intersect following the initial columns. In other words, each row contains six 1s on columns that are not incident with the other rows. We call the columns that contain those six 1s a block of 1s.

Without loss of generality we may assume that the first block occurs on columns 19-24, the second block occurs on columns 25-30, the third block on columns 31-36, etc. By exhaustive search, we find that there are 49,472 solutions of the SAT instance that uses the first 80 rows, the columns up to and including the first block, and the lexicographic column ordering clauses described in Section 3.2.

Our symmetry breaking method now uses the following properties of the symmetry group of case 1c:

1. The symmetry group fixing the first row (i.e., the symmetries that do not move the first block) is isomorphic to S4 ×S3. It has a set of generators {ϕ2, ϕ3, ϕ5, ϕ6, ϕ7} where ϕi is a permutation that swaps rows i and i + 1 (and appropriate columns) but fixes each of the other first eight rows.
2. The action of the symmetry group on the set of blocks is transitive, i.e., for each pair of blocks there exists a

symmetry that sends one block to another block. For example, ϕ1 sends block 1 to block 2.

We use the first property to show that of the 49,472 possibilities for the first block, only 469 possibilities are nonisomorphic under the symmetries that fix the first row. These numbers agree with those reported by [Lam et al., 1986]. This splits the search into 469 distinct cases, one for each nonequivalent possibility of the first block. Additionally, we now use the second property to remove further symmetries within these cases.

We label each of the 49,472 possibilities for the first block with a label between 1 and 469 and let t be the labelling function that when given an instantiation of the first block returns its label. Furthermore, let Bi denote the submatrix consisting of the ith block where 1 ≤ i ≤ 8 and let ψi denote a symmetry that sends block i to block 1 where 2 ≤ i ≤ 8. With ϕi defined as above, we can take ψ2 := ϕ1, ψ5 := (1, 5)(2, 6)(3, 7)(4, 8) (as row permutations in cycle notation), and ψi := ϕi-1 ◦ ψi-1 for all other i. We extend the labelling function t by giving an instantiation B of an arbitrary block Bi the same label as ψi(B).

Up to isomorphism we can assume that any partial projective plane in case 1c must satisfy

In other words, we can assume that the first block has the minimum label of all the blocks 1-8. For suppose a partial projective plane did not satisfy this condition: then there must be an index m such that block m has the minimum label. Applying ψm to this partial projective plane permutes the block labels and produces an isomorphic partial projective plane such that block 1 has the minimum label.

To encode the constraint (∗∗) in our SAT instances we use a series of blocking clauses. In each SAT instance the left-hand side of (∗∗) is known in advance, since each instance contains a fixed instantiation of the first block. In the first SAT instance the label of the first block is 1. In this case (∗∗) is trivial and does not block any solutions.

In the second SAT instance we need to block all solutions where t(Bi) = 1 for 2 ≤ i ≤ 8. To do this, suppose B is an instantiation of the first block that is labelled 1. We generate ψ-1 i (ϕ(B)) for all 2 ≤ i ≤ 8 and all ϕ in the symmetry group fixing the first line. This gives us an explicit collection of instantiated blocks that we want to ignore. If B′ is one of these blocks and B′ |= p means that variable p is assigned true in the assignment defined by B′ then the clause ∨B′ |=p ¬p prevents B′ from occurring in the solution of the SAT instance. We include such clauses in the SAT instance for all B′ of the form ψ-1 i (ϕ(B)). Similarly, in the kth SAT instance we include clauses of this form for all B′ of the form ψ-1 i (ϕ(B)) where B is an instantiation of the first block whose label is strictly less than k.

The above description specifically applies to case 1c, but cases 1a and 1b can be handled in a similar way. In case 1a the main difference is that each block consists of seven columns and some columns are shared between blocks. However, the same method applies because the two properties of the symmetry group that we used in 1c also hold in this case (cases 1a and 1c have an isomorphic symmetry group).

In case 1a we find 21,408 solutions of the SAT instance using the first 80 rows and the columns up to and including the first block (the block containing 1s on the first row). Using the symmetries that fix the first row we find that only 275 of the 21,408 solutions are nonisomorphic, thus naturally splitting the problem into 275 SAT instances that we solve in the same way as we solve the instances from case 1c.

We solve case 1b in a similar way, but in this case four of the blocks contain seven columns and the other four blocks contain six columns. We order the blocks such that the first four blocks contain seven columns and the last four blocks contain six columns. The first block coincides with the first block in case 1a and the symmetry group that fixes the first row is the same as in case 1a, so we also have 275 nonisomorphic solutions of the first block in case 1b.

In case 1b the symmetry group does not act transitively on the blocks because there are no symmetries that send blocks with seven columns to blocks with six columns. However, the symmetry group does act transitively on the first four blocks. Thus we use the same symmetry breaking condition given in (∗∗) except replacing the condition on i with 2 ≤ i ≤ 4.

4 Implementation and Results

The ten starting matrices were constructed following [Carter, 1974] who provides the first 8 rows and 16 columns of each case. The symmetry groups in each case were computed using the computer algebra system Maple 2019 which uses the library nauty [McKay and Piperno, 2014]. A complete collection of the row and column permutations in each group were saved so that they could be later used in the symmetry breaking method. A Python script of about 250 lines was written to generate the constraints (a) and (b) from Section 3.1, the column symmetry breaking constraints from Section 3.2, and for cases 2-6c the symmetry breaking constraints from the lex method in Section 3.3. As input it took the case for which to generate constraints and the number of rows and columns to use (though we used 80 rows in all cases). The script required the starting matrix as well as the permutations necessary for breaking the initial symmetries to be explicitly provided.

Cases 2-6c. For these cases the lex symmetry breaking method described in Section 3.3 was used. Our Python script was used to generate a single SAT instance for each case using all inside columns and an additional five columns. The cube-and-conquer SAT solving paradigm [Heule et al., 2017] was then used to show that each instance was unsatisfiable. The preprocessor of the SAT solver Lingeling [Biere, 2017] (at optimization level 5) simplified the instances prior to cubing, the lookahead SAT solver March_cu [Heule et al., 2011] generated the cubes, and an incremental version of MapleSAT [Liang et al., 2018] solved the instances and generated proofs of unsatisfiability.

In each case the proofs from the simplification and conquering steps were combined into a single proof by concatenation and the combined proof was verified using the proof checker DRAT-trim [Wetzler et al., 2014] as well as the GRAT toolchain [Lammich, 2020]. These cases took about 10 total hours to generate seven proofs whose size together totalled about 300 gigabytes in the plain uncompressed DRAT format.

Cases 1a-c. In these cases the block symmetry breaking method described in Section 3.3 was used. To begin, we generated SAT instances without the initial symmetry breaking clauses and using the columns up to and including the first block. In order to find all nonisomorphic solutions of the first block we use a "programmatic" (see [Ganesh et al., 2012]) version of the MapleSAT solver [Bright et al., 2018]. Whenever a solution is found we record the solution and then programmatically learn clauses that block the solution in addition to all solutions isomorphic to the found solution (using the symmetry group fixing the first block as computed by Maple). In this way, only the nonisomorphic solutions are recorded.

For every nonisomorphic solution a SAT instance is generated (by another Python script) that includes unit clauses completely specifying the first block and the symmetry breaking clauses from the block method in Section 3.3. The cube-andconquer method then solves these instances similar to how the previous cases are solved, though cases 1a-c generated 1019 individual proofs (469 in case 1c and 275 for each case 1a and 1b). The fact that these cases are exhaustive relies on nontrivial symmetry group computations, so we did not attempt to combine these proofs together.

These instances use five outside columns and all inside columns with the exception of the noninitial columns in block 5 (in cases 1a-b) and blocks 2 and 3 (in case 1c)- removing these columns generates a strictly smaller set of constraints that increases the performance of the SAT solver. Similarly, [Lam et al., 1986] ignored the columns in blocks 2 and 3 of case 1c and found no solutions. We verified their result, though this depends on the choice of representatives chosen for the nonisomorphic solutions of the first block-some choices of the representatives do in fact lead to satisfiable instances.

Interestingly, the performance in cases 1a and 1c improves if the initial symmetry breaking clauses are left out of the instances provided to the cubing solver, as the cubes generated in this manner are still effective in the conquering phase. In case 1b this causes some cubes to have dramatically unbalanced difficulties, so in this case we include the initial symmetry breaking clauses in the cubing instances.

Following [Lam et al., 1986], the nonisomorphic solutions of the first block are ordered in increasing size of their stabilizer group. In other words, the solutions that are isomorphic to many other solutions are given small labels and the solutions that are isomorphic to few other solutions are given large labels.

Results. The computations were run on a desktop machine with an Intel i7 CPU at 2.7 GHz. A summary of our results is presented in Table 2. In particular, this table specifies the total number of cubes used in each case, the proportion of the running time spent running the cubing solver, the total running time (in hours) of the SAT solvers, and the size of the proofs produced. The scripts used to generate and solve the SAT instances are available at uwaterloo.ca/mathcheck and the proofs are archived at zenodo.org/record/3767062.

The amount of cubing was controlled by the cubing cutoff -n parameter of March_cu (replacing the default heuristic cutoff). This cutoff method stops cubing once the number of free variables drops below the given bound. We attempted to perform an amount of cubing that would minimize the total solve time of each case, but we do not claim we used an exactly optimal amount. Typically starting with a cubing cutoff bound equal to about 75% of the free variables in the instance worked well and we tuned the bound higher or lower based on the solver performance. The cubing process was done once for each SAT instance and the cubes were incrementally solved by MapleSAT (which was used because it performed better than the default cube-and-conquer solvers).

5 Conclusion and FutureWork

We have provided a SAT certification that there exist no projective planes of order ten generating weight 16 codewords. This verifies the original searches of [Carter, 1974; Lam et al., 1986], as well as the verification of [Roy, 2011] that was based on an equivalent but different way of decomposing the search. The previous searches relied on highly optimized computer programs and special-purpose search algorithms. In contrast, our search used widely available and well-tested SAT solvers, computer algebra systems, and proof verifiers. Our search produced the first nonexistence certificates for this problem that can be checked by a third party.

Furthermore, our search is the fastest known verification of this result. The search of [Carter, 1974] that used about 140 hours on supercomputers was verified in about 4 hours, and the search of [Lam et al., 1986] that used about 2000 hours on a VAX-11 was verified in about 25 hours. This is in large part due to the increase in computation power available todayhowever, the verification of [Roy, 2011] which used modern AMD CPUs running at 2.4 GHz required 16,000 hours.

A similar SAT encoding has been used to show the nonexistence of weight 15 codewords in a few minutes-and under 10 seconds using programmatic symmetry breaking [Bright et al., 2020]. The next challenge is to show the nonexistence of weight 19 codewords. We believe our approach will be useful in this search but it will likely require alternative symmetry breaking methods specifically tailored to the weight 19 search.

Acknowledgments

We thank the reviewers for their detailed comments that improved the clarity of this article and we thank the open-access repository Zenodo for archiving our proofs.
