VAEGAN: A Collaborative Filtering Framework based on Adversarial Variational Autoencoders

1 Introduction

Collaborative Filtering (CF) technology is one of the earliest and most successful technologies in recommendation systems. In CF, autoencoder is a deep neural network which achieves significant performance and receives much attention recently. As shown in Figure 1(a), Collaborative Denoising Autoencoders (CDAE) [Wu et al., 2016] augments the standard Denoising Autoencoders (DAEs) [Vincent et al., 2008] by adding user latent vector. However, it is prone to overfitting with the increase of both users and items; it also requires additional optimization to obtain user latent vector when dealing with unseen users. Mult-VAE [Liang et al., 2018] successfully applies Variational Autoencoders [Kingma and Welling, 2013] to CF problems. While this model is very flexible in its dependence on the input, the latent variables are often limited to exponential family distributions or other distributions with tractable densities [Rezende and Mohamed, 2015] as shown in Figure 1(b). In fact, using more expressive inference model is essential to make use of the latent space at all [Chen et al., 2016] to get a tighter lower bound which can lead to substantially better results in performing maximum-likelihood training [Kingma et al., 2016]. To develop an expressive inference model, Generative Adversarial Networks (GANs) [Goodfellow et al., 2014] provide an effective solution.

∗Contact Author

† indicates equal contribution.

In GANs framework, two models are simultaneously trained: generative model G, which tends to capture data distribution, and discriminative model D, which tries to estimate the probabilities of sampling from the true distribution. Though GANs have achieved great success in image generation [Brock et al., 2018] and natural language generation [Yu et al., 2016], there is still a lot of room for its application in recommendation systems. The newly proposed IRGAN [Wang et al., 2017] and GraphGAN [Wang et al., 2018] have proved that GANs can also be promising and effective in CF. However, none of the previously proposed GAN-based CF models is combined with autoencoders, which are effective and useful especially when modelling large, sparse, highdimensional data. To the best of our knowledge, we are the first one to apply GANs to autoencoder structure in CF.

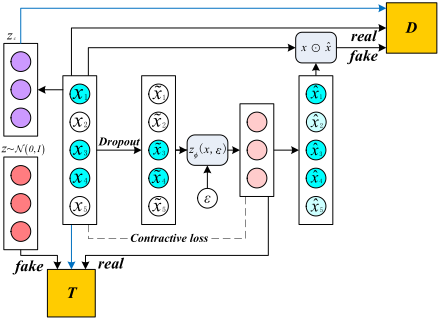

In this paper, we propose a novel CF framework based on Adversarial Variational Autoencoders, named VAEGAN. The overall structure of VAEGAN is shown in Figure 2. We first introduce Adversarial Variational Bayes (AVB) [Mescheder et al., 2017], which utilizes a flexible black-box inference model. As shown in Figure 1(c), AVB unifies VAEs and GANs through adversarial training. It obtains arbitrarily flexible inference model parameterized by neural networks, which leads to closer approximation to the true posterior distribution for the inference model and approximate maximumlikelihood assignment for the generative model. Then an auxiliary discriminative network is proposed to further reduce reconstruction loss between the generated vector and the ground-truth by adversarial training. Furthermore, we add contractive loss as a penalty term. This term results in a localized space contraction that yields robust features and improves generalization performance. We conduct experiments on several public real-world datasets to evaluate the quality of our proposed framework and investigate the effect of each proposed component. Experimental results show that the performance of VAEGAN significantly outperforms stateof-the-art top-N recommendation methods on some common evaluation metrics. ⊙

Our main contributions are summarized as follows:

1. We utilize a flexible black-box inference model as well as adversarial training to train VAEs for implicit variational inference, which unifies VAEs and GANs.
2. We introduce an auxiliary discriminative network to conduct adversarial training to further reduce the reconstruction loss of the observed user-item interactions.
3. Contractive loss is added to the classical reconstruction cost function as a penalty term to yield robust features and improve the generalization performance.

2 RelatedWork

In this section, we briefly introduce the related works in two aspects. Existing GAN-based and AE-based recommendation methods will be reviewed.

2.1 GAN-basedMethods

IRGAN [Wang et al., 2017] proposes a minimax game to iteratively optimize generative model G and discriminative model D. G generates relevant items by sampling from the candidate pool for the given user and D discriminates the groundtruth items from those generated by G. However, owing to the fact that the discrete item index generated by G is probably the same as the ground-truth, D tends to be involved in confusion and gets degraded due to the large portion of contradicting labels for the same item index. To address the problem, CFGAN [Chae et al., 2018] proposes a novel framework. Instead of sampling a single discrete item index, G tries to generate real-valued vectors to prevent D's confusion, which makes D guide G consistently to improve.

2.2 AE-basedMethods

DAEs extend the classical autoencoder by training to reconstruct input x from its partially corrupted version ˜x. CDAE [Wu et al., 2016] learns latent representation combined with user latent factor from the corrupted user-item preferences and reconstructs the full input. It is prone to overfitting and relatively complicated to scale to unseen users. MultVAE [Liang et al., 2018] extends variational autoencoders to CF with multinomial likelihood. The inference model is constrained to produce latent variables that approximately follow some common distributions, and the generative model tends to reconstruct the input by sampling from the distribution. Generally, the inference model may be not expressive enough to capture the true posterior distribution.

3 Our Method

Given u ∈ {1, ...,M} to index users and i ∈ {1, ...,N} to index items, we define the user-item interaction matrix as X ∈ RM×N from users' implicit feedback. xu = [xu1, xu2, ..., xuN] ∈ X denotes the u-th bag-of-words vector, where xui = 1 if the interaction between user u and item i is observed otherwise xui = 0.

3.1 Adversarial Variational Bayes

When performing maximum-likelihood training, it is usually intractable to directly optimize the marginal log-likelihood EpD(x)logpθ(x). After using Jensen's inequality, we have:

Variational Bayes rephrases this intractable problem into:

where pD(x) is the data distribution and θ, φ denote the parameters of generative and inference model respectively.

This is commonly called the variational lower bound or evidence lower bound (ELBO). VAEs have an explicit representation of qφ(z|x) such as a Gaussian distribution with diagonal covariance matrix whose mean and variance vectors are parameterized by neural networks, which can be optimized using the reparameterization trick [Kingma and Welling, 2013; Rezende et al., 2014] and stochastic gradient descent. With an explicit representation of qφ(z|x), it is straightforward to calculate the KL-divergence term KL(qφ(z|x), p(z)).

However, explicit variational inference is restrictive w.r.t. its dependence on z. A flexible implicit distribution may provide better approximation to the posterior and a tighter lower bound. The resulting latent variables model, which utilizes an implicit likelihood, may fit the data better [Husz´ar, 2017].

We could try to model the likelihood and the approximate posterior implicitly. Different from Mult-VAE [Liang et al., 2018], we can utilize a flexible black-box inference model qφ(z|x) instead. Then adversarial training which unifies VAEs and GANs is introduced to obtain a closer approximation to the real posterior and an approximate maximumlikelihood parameters assignment. While it is intractable to directly obtain the KL-divergence term KL(qφ(z|x), p(z)) with an implicit representation of qφ(z|x). We can rewrite the optimization problem in (2) as:

A discriminative network T(x, z) is introduced to implicitly represent the term log p(z) - log qφ(z|x) with its optimal value, thus replacing the intractable KL-divergence term KL(qφ(z|x), p(z)).

Specifically, given the latent variables representation qφ(z|x) and a prior Gaussian representation p(z), the discriminative network T(x, z) is trained to distinguish pairs (x, z) sampled independently using the prior distribution pD(x)p(z) from those sampled using the posterior distribution pD(x)qφ(z|x). Formally, the objective for the discriminator T(x, z) is as follows:

where σ(t) denotes the sigmoid function and Ψ denotes the parameters of the discriminator T(x, z).

The objective in (4) attains the maximum at σ(T ∗ (x, z)) = qφ(z|x) qφ(z|x)+p(z) , where T ∗ (x, z) denotes the optimal discriminator. Equivalently, we have

Inserting (5) into (3), the problem can be written as:

Using the reparameterization trick, we reparametrize sampling from qφ in terms of non-linear function zφ and noise variables ε which is generally assumed to be Gaussian noise:

We define the function: zφ(x, ε) = f(f(˜x+ε1)+ε2), where f denotes the non-linear function, ε1 and ε2 are sampled from gaussian distribution. For simplicity, we use zφ to denote zφ(x, ε) in this paper. The optimization objective (7) has been proved to be optimized directly w.r.t. θ and φ using stochastic gradient descent, while it needs to keep T ∗ (x, z) optimal in contrast. Therefore, we regard the optimization problems (4) and (7) as a two-player minimax game. Additionally, if (θ∗ , φ∗ , T ∗ ) defines a Nash-equilibrium for the two-player game defined by (4) and (7), the variational lower bound (ELBO) in (2) attains maximum.

3.2 Annealing

The first part of the optimization objective (7) tends to obtain the maximum-likelihood of the reconstructed input ˆx from the generative model. We obtain the reconstruction error using the logistic log-likelihood. The second part of (7) can be viewed as a regularization term. In recommendation systems, the CF models are supposed to recommend personalized items which the user might like and hasn't interacted, not to maximize likelihood and generate the accurate reconstructed input. By reducing the constraint of prior distribution on latent variables, we may get better recommendation performance. Meanwhile, simply using the origin regularization term, the model may be over regularized.

Additionally, the optimization of (7) requires to keep the discriminator T(x, z) close to optimality. Instead of performing several SGD-updates for the adversary and one SGDupdate for the generative model, it is reasonable to set a parameter α (0 < α < 1) to control the strength of the regularization term. The generative model tends to update at a slower pace than the discriminator.

When training VAEs, KL annealing [Bowman et al., 2015] and Free Bits [Kingma et al., 2016] are the commonly used methods to ensure the effect of KL-divergence term and prevent KL-vanishing [Bowman et al., 2015] or posterior collapse [Oord et al., 2016]. Similarly, inspired by KL annealing, we adopt a simple heuristic for setting α: we start training with α = 0 and gradually increase α, which consistently produces significant recommendation results.

3.3 GAN-based Reconstruction Loss

We introduce an auxiliary discriminative network D to conduct adversarial training to further reduce the reconstruction loss of the observed user-item interactions. The proposed autoencoder in Section 3.1 is regarded as G to generate plausible user-item preference vector that most closely resembles the ground-truth and D, in contrary, tries to distinguish groundtruth from generated vector as accurately as possible. The two-player game makes D guide G consistently to improve so as to generate vectors closer to the ground-truth.

However, it's generally difficult to tell whether a recommendation sequence is real or fake without a specific user. In order to help D to distinguish real input training examples from fake reconstructed input samples, inspired by Conditional GAN [Mirza and Osindero, 2014], a new latent vector zc is generated to characterize user. The model parameters of D are learned while taking user's personalization into account with the conditional user-personalized vector.

Meanwhile, if we simply regard the reconstructed input ˆx as the fake sample, the gradient from D will guide G to reduce the reconstruction loss of both the observed interacted and non-interacted items. In other words, the click probabilities of the interacted items tend to be predicted as 1 and the probabilities of the non-interacted items are assumed to be 0. It seems to make no sense in recommendation tasks as we are more focused on making recommendations on potential preference items which the user has not interacted with rather than obtaining the exact reconstructed results. Therefore, we reset the reconstructed predicting probabilities of the non-interacted items to 0 before we send it into D. In this way, D distinguishes the reconstructed input from the origin input according to the interacted items and G does not get the gradient of the non-interacted items from D. So G has expected predicting probabilities on the non-interacted items, which is reasonable and desirable in recommendation tasks.

Formally, for user u, we take {ˆx ⊙ xu, zcu} as the fake sample and {xu, zcu} as the real sample, where ⊙ denotes element-wise multiplication and {} denotes the concatenation of the vectors inside and zcu is the conditional characterized vector for user u. ˆx⊙xu obtains a processed reconstruction vector where the probabilities of the non-interacted items are reset to 0. The objective for D is as follows:

where τ denotes the parameters of the discriminator D and ξ denotes the parameters of the additional part that generating the conditional characterized vectors. The objective for G is:

Then we introduce it as a regularization term of the reconstruction loss:

where β is a tunable parameter to control the strength of the regularization term.

3.4 Contractive Loss

Though the inference model is theoretically flexible and expressive, the latent space may be over expanded leading to a delicate recommendation model. It has been demonstrated that many state-of-the-art classifiers are actually very fragile and vulnerable to adversarial examples [Szegedy et al., 2013], implying that the model is prone to suffering from the perturbations of the input. Inspired by Contractive AutoEncoders [Rifai et al., 2011], we propose a simple and effective way to obtain robust latent representations.

We add a penalty term as the contractive loss to the reconstruction objective function. This penalty term corresponds to the Frobenius norm of the Jacobian matrix of the latent variables from the inference model with respect to the input, resulting in a localized space contraction thus yields robust representations. As a result, the latent representations tend to be robust to small changes of the input. In recommendation systems, it is common to obtain exactly similar input from different users as the input data is often large and sparse. By introducing contractive loss, we can get exactly similar latent representations with respect to similar input and the generalization performance of the model can be improved.

Formally, in our model, the input X ∈ RM×N is mapped by the inference model qφ(z|x) to the latent representations z. We utilize a sensitivity penalization term to penalize its sensitivity to the input, which is the sum of squares of all partial derivatives of the latent representations w.r.t. input:

where zu denotes the latent representation of user u. The mapping to the latent space is encouraged to be contractive in the neighborhood of the training data by penalizing ‖Jqφ (X)‖2F , implying an invariance or robustness of the latent representations for small changes of the input.

Overall, our final objectives of VAEGAN are as follows:

where λ denotes a tunable parameter to control the strength of penalizing the contractive loss.

4 Experiments and Analysis

In this section, we perform thorough experiments to evaluate our proposed VAEGAN on four real-world datasets. We aim to answer the following research questions:

• Q1. How does our proposed method perform compared with the state-of-the-art top-N recommendation methods?
• Q2. How much does each of our proposed components contribute to the model?
• Q3. Howmuch is our proposedmethod influenced by the key hyperparameters?

4.1 Experiments

Datasets

In order to fully demonstrate the effectiveness of our proposed VAEGAN, we study the performance of different models under both strong and weak generalization [Marlin, 2004]. Four common real-word datasets: MovieLens-20M, Nextflix Prize 1 , MovieLens-1M and MovieLens-100K are used to evaluate our method. In strong generalization experiments, we use two medium to large scale datasets: MovieLens-20M and Netflix Prize as the Mult-VAE [Liang et al., 2018] did. All users are divided into training/validation/test sets. Specifically, we take 10K and 40K users as the the held-out validation/test users for MovieLens-20M and Netflix Prize respectively. The entire click histories of the training users are used to train models. For evaluation, we take 80% of the click histories for each held-out user as the input and compute metrics on the remaining 20% of the click histories. The explicit data is binarized by keeping those with ratings no less than 4 stars and only users who have rated at least five movies are kept. In weak generalization experiments, we use two small datasets: MovieLens-1M and MovieLens-100K as the CF-GAN [Chae et al., 2018] did. We split all the user-item interactions of each user into two subsets: 80% for training and 20% for testing. All the explicit data is treated as implicit feedback and we only keep users who have rated at least five movies.

1 https://www.netflixprize.com/

Evaluation Metrics

To evaluate our model, we adopt three common metrics for top-N recommendation: recall(R@N), normalized discounted cumulative gain(G@N), and mean reciprocal rank(M@N). While Recall@N equally weights all the top-N items, NDCG@N and MRR@N assign higher scores to higher ranks.

Baselines

We compare our proposed VAEGAN with the following stateof-the-art collaborative filtering methods:

CDAE. It extends the denoising autoencoders (DAEs) by adding user-specific latent vector [Wu et al., 2016].

IRGAN. It is the pioneer GAN-based method that successfully applies GANs to CF [Wang et al., 2017].

CFGAN. It suggests a new direction of vector-wise adversarial training [Chae et al., 2018].

Mult-VAEandMult-DAE. They improve the performance of variational autoencoders (VAEs) and denoising autoencoders (DAEs) by using a multinomial likelihood for the data distribution [Liang et al., 2018].

aWAE. It extends the Wasserstein Autoencoders [Tolstikhin et al., 2017] for collaborative filtering to address the problem that the distributions of the encoder latent variables overlap a lot [Zhong and Zhang, 2018].

Some of the above methods, such as CDAE, are not suitable for training under strong generalization since they lack the necessary latent representations for unseen held-out users. Though we could reluctantly solve this problem using additional optimization, it is not a rigorous and precise way to verify models. For fair comparisons, we train them under weak generalization. Meanwhile, training models under strong generalization can better illustrate the effectiveness and robustness, as it's relatively more difficult to train models under strong generalization than weak generalization. So, we train the other models under strong generalization.

Implementation Details

We keep the model with the best validation NDCG@N and the structure and hyperparameters are dertermined according to test metrics with it. Concretely, following Mult-VAE, we adopt symmetrical autoencoder structure and set the dimension of the bottleneck layer to 200. The overall model structure is [I → 600 → 200 → 600 → I], where I denotes the total number of items. We apply dropout [Srivastava et al., 2014] at the input layer with probability 0.5 to avoid overfitting. Weight decay isn't adopted in our model as we already have regularization terms. We train our model using Adam with batch size 500 and 256 under strong and weak generalization, respectively. We train for 300 epochs for MovieLens20M, 200 epochs for Netflix Prize and 1000 epochs on the other two datasets. Other key hyperparameters will be further discussed in Section 4.4.

4.2 Q1. Comparisons with The State-of-the-arts

In this section, we compare our proposed VAEGAN with several popular top-N recommendation methods under strong and weak generalization as discussed in Section 4.1.

Table 1 shows the results of various models under strong generalization on MovieLens-20M and Netflix, respectively. We can see that our model achieves the best performance on both datasets. Our methods outperform significantly than Mult-VAE, which is the most similar method to ours, in terms of all the metrics. It demonstrates that AVB improves the restricted performance of VAE by relieving the problems that the latent representations are limited and the inference model is not expressive enough. Additionally, our model achieves superior accuracy by the adversarial training on the generated recommendation results and the contractive regularization term resulting in robust features. Compared to other nonlinear AE-based methods, our model imposes stronger modelling assumptions and achieves state-of-the-art performance.

Table 2 shows the results under weak generalization on MovieLens-1M and MovieLens-100K. We can see our model outperforms the state-of-the-art methods. Compared to other GAN-based methods, our model both relies on the adversarial training process of GANs and combines the AE structure which is effective and powerful when user-item interactions are scarce. Overall, our proposed VAEGAN consistently produces good results under both strong and weak generalization compared with GAN-based and AE-based methods.

4.3 Q2. Effectiveness of Proposed Components

AVB. It has been illustrated that AVB obviously performs better than Mult-VAE in Table 1, 2. AVB utilizes a flexible black-box inference model and adversarial training to enhance the expressiveness of the model, thus obtaining a better approximation to the true posterior distribution.

AVB+D. Table 1, 2 show that after adding an auxiliary discriminative network D, the model performs better. We conduct additional experiments to study the influence of the adversarial regularization coefficient in Section 4.4. The discriminative network D implicitly measures the distance between distributions of input data and reconstructed data using black-box neural networks. The two distributions are getting closer and closer through adversarial training.

AVB+D+C. Table 1 shows that the model performs better after introducing the contractive regularization term. We also conduct additional experiments to study the influence of the contractive regularization coefficient in Section 4.4. The penalty term encourages the latent representations to be robust to small changes of the input around the input examples. It would be effective to learn robust latent representations when modelling unseen click histories. However, under weak generalization, the training input examples also appear during evaluation. The contractive regularization term can hardly play its due role under weak generalization as the experimental results show in Table 2.

4.4 Q3. Influence of The Key Hyperparameters

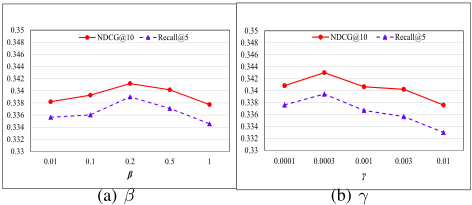

In this section, we mainly investigate the following hyperparameters in our proposed method: the annealing coefficient (α), regularization coefficient of D (β), contractive regularization coefficient (γ). Figure 3 shows the validation NDCG@100 with and without annealing to α = 0.2 and 1 (α

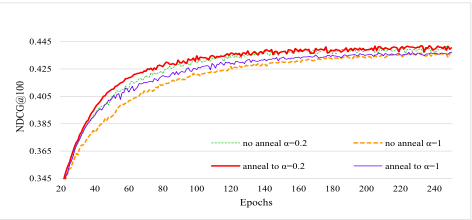

reaches maximum at around 80 epochs). We can see that with annealing the model converges faster and obtains better performance. In this paper, we set α as 0.2 which consistently produces good results on the test set. Figure 4 shows the performance of our method depending on the value of β and γ. As we can see, when we set β as 0.2, γ as 0.0003, the proposed method reach the best results. The model may be over regularized or the proposed component may be underutilized with other parameters settings.

5 Conclusions

In this paper, we present a variant of Variational Autoencoders based on adversarial training for collaborative filtering. The inference model is much more flexible and expressive to model almost arbitrary posterior distributions over the latent variables. GAN-based reconstruction loss further improves the performance of our model. Moreover, we obtain robust latent representations by introducing contractive loss.

Acknowledgments

The authors would like to thank the Knowledge Discovery and Behavior Analysis Department of SenseTime Research for the valuable support.
