Hierarchy Knowledge Graph for Parameter-Efficient Entity Embedding

1 Introduction

ious domains, including recommendation systems [Yang et al., 2023; Du et al., 2022; Zhang et al., 2023], interpretability analysis [Ma et al., 2023; Bing et al., 2023], and zero-shot learning [Liu et al., 2020; Wang et al., 2018], among others. KGs, as a form of structured human knowledge, are composed of triples, i.e., (head entity, relation, tail entity), or (h, r, t) for short, where entities represent objects or abstract concepts, and relations denote the relationships between entities.

∗Corresponding Author.

In traditional KGs, each entity corresponds to a unique embedding that is independently trained. It results in the following issues: 1) The number of model parameters is correlated with the dataset scale, leading to significant hardware resource consumption during training and deployment. The space complexity of these methods is theoretically O(|E| + |R|) [Galkin et al., 2021] where |E| is the number of entities, and |R| is the number of relations. Since the number of entities is typically much larger than the number of relations (e.g., YAGO3-10: 123k entities vs. 37 relations and OGBL-Wikikg2: 2,500k entities vs. 535 relations) in real-world KGs, |E| is the dominant factor in space complexity. Our analysis focused on |E|, following prior work (e.g., EARL [Chen et al., 2023]). 2) Since entity embeddings are not shared between entities, the only way to limit model scales in traditional methods is by reducing the embedding dimensions. In traditional methods, reducing embedding dimensions too much can lead to excessive compression, which results in information loss and degraded model performance. As shown in Figure 1(a), the performance of RotatE [Sun et al., 2018], a state-of-the-art knowledge graph model, decreases dramatically when entity embedding dimensions are reduced. In summary, simply reducing the embedding dimensions is not an effective manner to limiting model scale.

Several works [Galkin et al., 2021; Chen et al., 2023] have been developed to address the above issues. These works primarily focus on reducing the number of entity embeddings to limit space complexity. These works first randomly sample a fixed proportion of entities to serve as anchors, each with a corresponding unique embedding. Specifically, NodePiece [Galkin et al., 2021] generates entity embeddings by utilizing the nearest k anchors, while EARL generates embeddings by incorporating relation types and passing messages from these anchors. However, the methods still fall short due to the following challenges: 1) Space Complexity. Despite the significant reduction in model scales, the space complexity of existing methods remains O(|E| + |R|). This is due to selecting a fixed proportion of entities as anchors, though the proportion is low. 2) Sampling Strategy. The random sampling of entities in existing methods adversely affects model performance and stability. The uneven positional distribution of sampled anchors leads to suboptimal entity representations.

To address the aforementioned challenges, we propose HRL, a hierarchical representation learning method, which assumes entity embeddings are affected by two factors: common representations shared across entities and entity-specific representations distinguishing individual entities. Inspired by human cognitive processes, HRL begins with capturing the common characteristics of entities within a category and then delves into the individual features of each specific entity. For example, as illustrated in Figure 1(c), entities such as Person A and Person B belong to the same category and share common representations relevant to their category, which constrains their relation types, whereas Film C does not. It is logical for entities in the Person category to have relations such as lived or profession, while relations like genre or music are illogical for the Person category. Meanwhile, it is not possible to distinguish among entities belonging to the same category merely by common representations. It necessitates incorporating entity-specific representations. For example, (Person: A, nomination, Award: I) and (Person: B, nomination, Award: I) cannot be distinguished by common representations, as both A and B fall into the Person category. Distinguishing between them requires knowing the structural information relevant to A and B in the KG. B's profession J and Award I belong to the same domain according to (Person: B, Profession, Profession: J), making the latter more likely to be the positive instance.

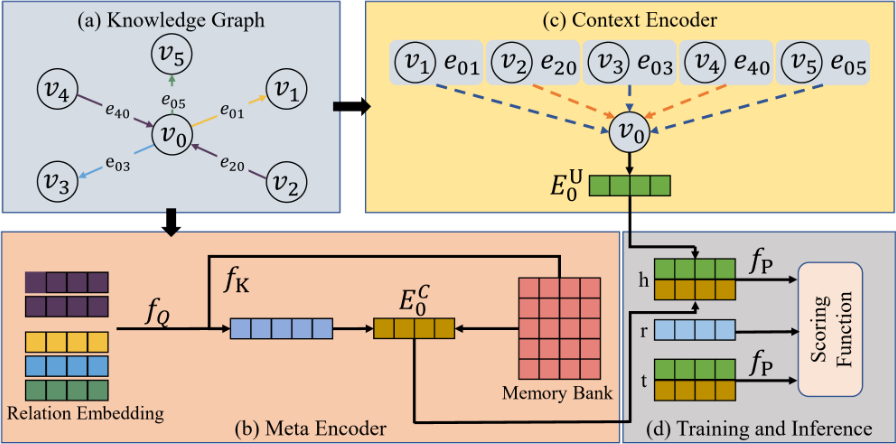

Our framework incorporates a Meta Encoder to capture common representations using a memory mechanism, and a Context Encoder to learn entity-specific representations from structural information. This combination allows us to efficiently manage model parameters while maintaining robust entity differentiation. Then, we integrate common and entityspecific representations as entity embeddings and follow the traditional KG training regime to optimize the parameters. This design model eliminates the need to assign a unique embedding to each entity, thereby reducing the model parameters while obviating the need for anchor selection and precomputation. Finally, we illustrate the causalities about the entity embedding generation and knowledge graph complete task with SCM. The contributions of this paper are summarized as follows:

• We propose a HRL that contains a Meta Encoder and a Context Encoder that can capture common and entityspecific representations of entities. Significantly, the number of parameters in the model is independent of the dataset scales, achieving a space complexity of O(|R|).
• We introduce a novel causal perspective for analyzing the knowledge graph completion process, offering a theoretical expression for our model design. To our knowledge, this is the first successful application of structural causal models to guide entity embedding generation.
• We conduct extensive experiments to evaluate our model on three real-world graph datasets. Our model maintains competitive performance compared with state-of-the-art parameter-efficient models on knowledge graph completion tasks while utilizing fewer parameters.

2 RelatedWork

2.1 Causal Learning

Causal learning is widely used in numerous scenarios. Traditional methods often focus on correlation rather than underlying causality. KGCR [Wei et al., 2022] enhances recommendation systems by learning fine-grained user preferences using causal KGs. CAL [Sui et al., 2022] introduces a causal perspective to graph neural networks, improving feature exploitation while avoiding shortcuts. STNSCM [Deng et al., 2023] uses a causal graph for traffic prediction, analyzing relationships among factors to improve performance by extrapolating from factual to counterfactual scenarios. This paper analyzes the entity embedding generation from the perspective of causality, offering a theoretical explanation.

2.2 Parameter-Efficient Model

Current models mainly pursue the enhancement of performance with increasing model size, which complicates training and deployment. To address this, methods like quantization and knowledge distillation are commonly used. Quantization reduces the precision of weights and activations to minimize accuracy loss, as seen in TS-CL [Sachan, 2020] and LightKG [Wang et al., 2021a]. Knowledge distillation transfers knowledge from larger models to smaller ones, as exemplified by MulDE [Wang et al., 2021b] and DualDE [Zhu et al., 2022]. These methods require training large models first. Recently, there has been the emergence of a new perspective, which involves directly reducing model scales. NodePiece [Galkin et al., 2021] selects a subset of entities to serve as anchors that are assigned unique embeddings. The embeddings for the other entities are then generated based on these anchors and the relations that belong to the other entities. The number of anchors is 10 - 100× smaller than the total number of entities. EARL [Chen et al., 2023] constructs entity embeddings using connected relations, k-nearest anchor entities (similar to NodePiece), and multi-hop neighbors. Our model also falls into the above category and is compared with NodePiece and EARL as the same type.

3 Preliminaries

A knowledge graph consists of an entity set E, a relation set R, and a triple set T. | · | denotes the number of elements of the set. Further, a knowledge graph is also denoted as G = (V, E,X,R), where V = {vi | 0 ≤ i < |E|} is a node set corresponding to entities and E = {eij | 0 ≤ i, j < |E|} denotes the set of directed edges based on the relation set R. X = {xi ∈ Rd | 0 ≤ i < |E|} and R = {rij ∈ Rd′ | 0 ≤ i, j < |E|} represent the entity and relation embeddings, respectively. eij represents a directed edge from vi to vj, and its embedding is rij.

Problem Statement. Given an entity set E, a relation set R, and a triple set T , the goal is to complete the missing triples.

4 Methodology

4.1 Meta Encoder

The Meta Encoder significantly reduces the need for unique embeddings by generalizing across entities within the same category. Specifically, the Meta Encoder learns the patterns of entities by interactions between entities and relations. As shown in Figure 1(b), entity representations are correlated with the interacted relation types, which means that entities sharing the same relation types can be grouped together. This fashion leads to more compact and efficient representations, making the model require fewer parameters.

The Meta Encoder leverages memory mechanisms and consists of a memory bank and a query network. The memory bank, serving as a representation space, stores representations for various entity categories. The query network, using relation embeddings as input to effectively retrieve, generates queries to access and retrieve relevant entity embeddings from the memory bank.

As shown in Figure 2(b), the memory bank M ∈ Rη×d is a learnable matrix that is randomly initialized. We generate key vectors K and query vectors Qi to compute the relevance weights of each embedding vector in the memory bank for the entity i. The K and Qi are expressed as:

where fK and fQ are stacking nonlinear layers, K,Qi ∈ R1×η . mi ∈ Rd is an entity embedding based on relation types where i is the index of entities.

To generate entity-related queries, we design a hypergraph structure, where entities and relations are represented as nodes and hyperedges, respectively. Entities sharing the same relation type are connected to the same hyperedge. The relation type embeddings are learnable parameters. The embeddings of entities are progressively refined through a messagepassing process over the hypergraph. The message passing process is formulated as:

where N v i is a relation set connected by entity i and N e k is an entity set belonging to relation k. ¯x and ¯ e are the entity and relation embeddings, respectively. ρv and ρe are aggregation functions that are set as pooling. After multiple iterations of message passing, the final entity embedding are used as mi. This design ensures an efficient and expressive mechanism for capturing relational and structural information within the knowledge graph.

Next, we calculate the weight of each embedding vector in the memory bank and generate common representations, which are formulated as:

where EC i ∈ R1×d , ⊗ is the matrix product, and softmax(Qi +K) is a weight that measures the relatedness of the entity vi to the embedding vectors inM. The softmax normalizes the weights, assigning higher values to more relevant vectors. This results in more distinctive common representations for entities from different categories, enhancing the model's ability to differentiate.

4.2 Context Encoder

The Meta Encoder generates common representations that can capture the characteristics of entities in one category. However, while the common representations capture common characteristics, they lack the specificity needed to differentiate between entities within the same category. As shown in Figure 1(c), common representations can effectively identify incorrect instances like (Person: A, genre, Genre: D), but distinguishing entities of the same category, such as (Person: A, nomination, Award: I) and (Person: B, nomination, Award: I), remains challenging due to the overlap in their common representations. To that end, we propose a Context Encoder that learns entity-specific representations, which are essential for distinguishing between entities that share common representations.

The Context Encoder learns entity-specific representations by leveraging graph structural information, which helps differentiate entities based on their unique topological relationships within the KG. For entities within the same category, their topological structure provides distinguishing information. The Award I and Profession J are in the same domain, from which it can be inferred that (Person: B, nomination, Award: I) could be a positive instance, rather than (Person: A, nomination, Award: I). Since KGs are heterogeneous graphs, the Context Encoder aggregates both entity and relation embeddings, which is expressed as:

where ϕ is an update function that updates each entity embedding by aggregating its current embedding hti with its neighboring embeddings, ut+1 i and vt+1 i . ψu and ψv are message functions which are nonlinear layers. Ni· and N·i are the sets of tail and head entities connected to the entity vi, respectively. rt ik and rtki are the relation embeddings of (vi, vk) and (vk, vi). || is the concatenation operation. As shown in Figure 2(c), the entity v0 integrates tail entities, i.e., (v1, e01), (v3, e03), and (v5, e05), and head entities, i.e., (v2, e20), and (v4, e40). φu and φv are nonlinear layers to update relation embeddings rt ik and rtki . h0i is initialized with the common embedding EC i and r0 is a relation embedding r. The output is the entity-specific representation EU i ∈ R1×d .

In our model, we aggregate information about neighboring entities and relations multiple times to enlarge receptive fields, which can enhance the distinguishability of entityspecific representations. However, frequent message passing can lead to over-smoothing embeddings, where the embeddings of adjacent nodes become too similar to distinguish between them. Therefore, the number of stacking layers is carefully chosen to balance between capturing sufficient context and avoiding over-smoothing.

4.3 Training and Inference

In our model, parameters are trained in the same manner as traditional models. We design a projection layer to integrate the common and entity-specific representations into entity embeddings, which is expressed as:

where fP denotes a projection layer that is a linear layer and xi is the embedding of the entity vi.

The HRL can adaptively integrate the scoring function and training method used in existing KGs. In HRL, we adopt the widely-used RotatE's scoring function and the selfadversarial negative sampling strategy for training.

4.4 Theoretical Analysis of Model Design

We first analyze the causal relationships among knowledge graph information, entity embeddings, and relation embeddings using a SCM, as depicted in Figure 3. In real-world scenarios, the complete knowledge graph is unavailable, therefore, the KG can be divided into two parts: a training set that is the observed part of the KG and a test set that is the unobserved part of the KG. We assume entity embeddings H and T consist of both common (C) and entity-specific (U) representations which are derived from the knowledge graph (G). R is affected by H, T, and G when it is inferred.

We need to model the C and U effects on R for parameterefficient embedding and robustness. However, since knowledge graphs are complex, observed relations are directly used to infer unobserved relationships, which introduce noise. In Figure 1(c), we believe J and I belong to the same domain, but L and I are uncorrelated. When (Person: B, profession, Profession: J) and (Person: B, profession, Profession: L) are all or partially observable, it is possible that the inference of (Person: B, nomination, Award: I) is negatively affected. Therefore, we quantify the impacts of the common and entityspecific representations on KG completion.

We cannot apply backdoor adjustments based on the path C, U ← G → R because G is only partially observable, leading to incomplete adjustments for confounding effects. Additionally, we apply the frontdoor criterion according to the path G → C,U → H, T → R ← G, cutting off the link G → C, U. Formally, we formulate:

where P(R|do(C,U)) provides a causal perspective on how specific interventions in the C and U influence the R within KGs, thereby offering valuable insights into the underlying causal relationships. It denotes the probability distribution of R resulting from such interventions. do(C,U) indicates an intervention in the causal model where C and U are fixed to specific values. Additionally, P(C′ ) represents the distribution of common representations and P(U′ |C′ ) represents the distribution of entity-specific representations given common representations. P(H, T|C,U) is a projection layer that generates entity embedding H and T based on common and entity-specific representations. P(R|H, T, C′ , U′ ) denotes the distribution of the relation between the head entity and the tail entity, i.e., the feature extraction and the scoring function.

4.5 Space Complexity Analysis

We theoretically analyze the space complexity of our model and compare it with baseline models. We assume the number of entities and relations are |E| and |R|, respectively. Since the number of entities |E| is typically much larger than the number of relations |R|, the space complexity due to |R| is often negligible in comparison to |E|.

In most traditional methods, the space complexity is dominated by |E| entity embeddings, leading to a space complexity of O(|E|). While |R| relation embeddings contribute to the overall complexity, |E| is typically much larger, so the O(|R|) term in O(|E| + |R|) is ignored and the complexity is considered to be actually O(|E|). This means the number of parameters increases linearly as the growth of the dataset scales. To reduce the number of parameters, existing methods often use entity sampling techniques. They sample a proportion p of entities as anchors and generate embeddings for the remaining entities based on these anchors, reducing the number of unique entity embeddings required. However, the resulting space complexity still includes p|E| for entity embeddings, |R| for relation embeddings, and additional parameters for other components. The methods relieve the issue, but the space complexities are still O(|E|).

In our model, parameters include |R| relation embeddings, a Meta Encoder, a Context encoder, and a projection layer. The parameters of the Meta Encoder include a memory bank with a fixed size, a query network utilizing a pooling layer, and several linear layers. Since the scale of these components does not depend on the number of entities |E|, their combined space complexity is O(1). The parameters of the Context Encoder include several stacking nonlinear layers. Given that the number of these layers is fixed and does not scale with |E|, their space complexity is O(1). The projection layer also consists of linear layers, similarly, its space complexity is O(1). In conclusion, the space complexity of HRL is O(1) when |R| is ignored, indicating that the number of parameters remains constant and does not increase with dataset scales.

5 Experiments

In this section, we perform KG completion tasks to train and evaluate our model. Note that the core goal of our model is to achieve parameter efficiency, reducing the model scale while maintaining reasonable performance, rather than solely aiming to surpass traditional methods with high space complexity. In summary, we demonstrate the following questions: RQ1. Can our model achieve reasonable performance with fewer parameters? RQ2. What is the influence of various components in the HRL on different datasets? RQ3. Can the Meta Encoder effectively capture the common representations as our assumption? RQ4. What is the impact of different settings on HRL?

5.1 Datasets

We evaluate our model on three real-world knowledge graph datasets: FB15k-237 [Toutanova et al., 2015], WN18RR [Dettmers et al., 2018], and CoDEx-L [Safavi and Koutra, 2020]. The datasets are well-established KGs commonly used in the field. Detailed statistics and descriptions of these datasets are provided in Table 2.

5.2 Baselines

We compare HRL with two categories of models: 1) Traditional Models. We select RotatE without constraint on the number of parameters, which serves as an upper bound of performance. For a fair comparison, we adjust the embedding dimension of RotatE and compGCN [Vashishth et al., 2020] to approximately match the number of other baselines. 2) Entity-efficient Models. We compare with NodePiece and EARL, which use similar scoring as RotatE.

5.3 Experimental Settings

Implementation Details

For the Meta Encoder, the memory bank dimension is searched within the range {128, 256, 512}. For the Context Encoder, the number of layers is set to 2 for FB15k237 and CoDEx-L, and 3 for WN18RR. We employ the Adam [Diederik, 2014] optimizer with a learning rate of 1e-3 and a weight decay of 5e-5 . The batch size and the number of negative samples are set to 1024 and 256, respectively. Due to the RotatE's training strategy, the margin γ is chosen from {8, 9, 10, 11, 12}. The temperature factor α is set to 1.

Metrics

We utilize a widely-used metric, MRR in the filtered setting [Bordes et al., 2013] on KG completion tasks to evaluate our model. In addition, we report the number of parameters #P to compare our model scale with baselines. Meanwhile, we use Effi [Chen et al., 2023] to quantify the efficiency of models, which is calculated as MRR #P .

5.4 Performance Results (RQ1)

To demonstrate the effectiveness of HRL, we compare it with baselines on three benchmark datasets. The performances are summarized in Table 1. We set different entity dimensions for the three datasets and report the HRL and the baseline methods performances.

By analyzing the results, we have the following findings: 1) In the case where RotatE's parameter scale is unconstrained, it achieves optimal performance in MRR. However, its parameter scale significantly exceeds that of parameter-efficient models and HRL, and its Effi is substantially lower compared to other models. Additionally, when reducing the parameter scale of RotatE to be comparable to other models, its performance in MRR and Effi falls short compared to baseline methods. 2) NodePiece and EARL significantly reduce model scale by selecting a subset of entities as anchors and assigning unique embeddings only to these entities, rather than to all entities. Meanwhile, they leverage structural information within the knowledge graph to improve performance on MRR. In terms of Effi, these parameter-efficient models outperform traditional models. 3) HRL demonstrates a significant reduction in model scale compared to other methods, with decreases ranging from 47.6% to 50%. Despite this substantial decrease in model scale, HRL outperforms the baselines in performance metrics, with improving ranging from 1.3% to 1.7% in MRR across the different datasets. HRL demonstrates superior performance in terms of Effi compared to baseline methods, indicating its ability to better balance model performance with space complexity. This balance underscores the ability to optimize computational resources without sacrificing performance.

5.5 Ablation Study (RQ2)

This subsection describes ablation studies of HRL to validate the effectiveness of key components, as shown in Table 1. We consider the following variants of our base model: 1) w/o CM.: We remove the Meta Encoder. In this variant, the query network's input is used as the common representations to initialize the entity-specific representations and the entityspecific representations are treated as the entity embedding. 2) w/o CT.: We remove the Context Encoder, and the common representations are considered as the entity embedding to optimize parameters. 3) w/o PJ.: We remove the projection layer and concatenate the common and entity-specific representations as entity embeddings.

The performances of the competing baselines and HRL are summarized on the datasets shown in Table 1. From this table, we can have the following findings: 1) In terms of the number of parameters, the Context Encoder is more than the Meta Encoder and the projection layer. As the dimension of the entity embeddings becomes wider, the number of parameters in the Context Encoder grows the fastest. 2) The performance of w/o CT. on WN18RR drops dramatically compared to its performance on FB15k-237. We believe the number of relation types results in the phenomenon. Due to P(U ′ |C ′ ), the Q is not a good prior distribution for a Context Encoder on WN18RR. 3) The projection layer is crucial for enhancing entity representations. A simple concatenation of common and entity-specific representations cannot capture the distribution of P (H, T |C, U) effectively. 4) While the partial variants improve the efficiency (Effi), they lead to decreases in MRR and compromise the model's robustness. This suggests that these variants' performance is more sensitive to the characteristics of datasets and the components are necessary for the HRL.

5.6 Case Study (RQ3)

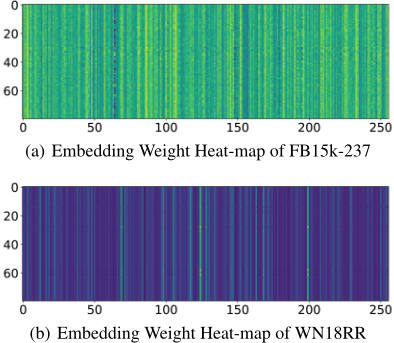

We further present a case study to verify our assumption that the Meta Encoder effectively captures common representations. We randomly sample 80 entities from one category to analyze their embedding weights, computed as softmax(K+Q) for the memory bank. As shown in Figure 4, the embedding weights of entities within the same category exhibit a similar distribution. Therefore, the Meta Encoder can capture the common representation of entities in one category. Additionally, the results of the w/o CT. demonstrate that common representations for different categories can be effectively distinguished.

5.7 Parameter Study (RQ4)

Impact of memory bank dimension

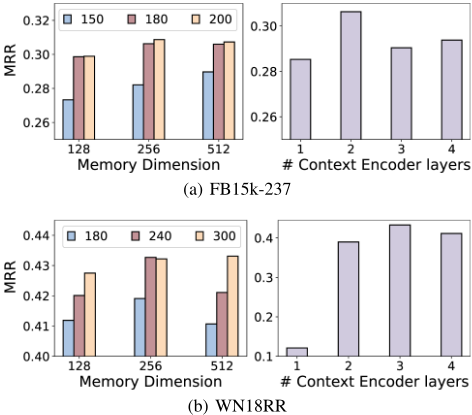

As shown on the left in Figure 5(a) and (b), the memory bank dimension affects the HRL performance. In general, with the increase in memory bank dimension, the performance of HRL starts to increase at the beginning, then plateaus or declines. Initially, a larger memory bank dimension increases the embedding space, which enhances the model's learning capacity. However, excessively large dimensions result in overfitting, diminishing the model's generalization ability and leading to performance degradation.

Impact of the number of Context Encoder layers

We also conduct experiments on different numbers of Context Encoder layers. The experiment results are displayed on the right in Figure 5(a) and (b). Initially, MRR improves as the number of Context Encoder layers increases. The increased layers enlarge receptive fields, making entity-specific representations to obtain rich structural information. It enhances the distinguishability of the entity-specific representations, as well as model performances. Then, the MRR declines with the number of Context Encoder layers increasing. Layer stacking makes message passing frequent, which results in the representations being too similar to distinguish. However, as the number of layers continues to increase, frequent message passing can make over-smoothing embeddings, leading to diminished performance.

6 Conclusion

In this paper, we propose a hierarchical representation learning method, a parameter-efficient model designed to reduce the number of parameters while maintaining competitive performance. HRL leverages a combination of the Meta Encoder and the Context Encoder to capture both common and entityspecific representations. HRL achieves a significant reduction in model scale compared to existing models, while still delivering robust performance across three benchmark datasets. A critical aspect of HRL involves the use of SCM to analyze the causal relationships between entity embeddings, relation embeddings, and knowledge graph information. SCM provides a theoretical analysis for understanding how common and entity-specific representations influence relations within KGs. Finally, we conduct numerous experiments to demonstrate the effectiveness of our model.

Acknowledgments

This work was supported by National Natural Science Foundation of China (No. 62072209) and the Science and Technology Development Program of Jilin Province (No. 20240302093GX).
